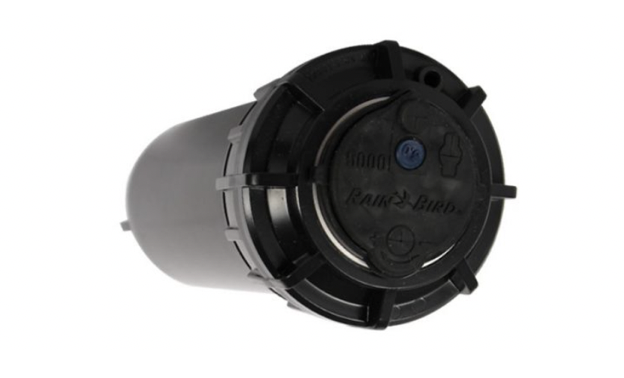

Rain Bird® part and full circle sprinkler 5004 pc/3,0

Rain Bird® Part and full circle sprinkler 5004 PC/3,0 Rain Bird®

PC sprinkler is adjustable from 40 ° to 360 °.
Range: 7.6 to 15.2 m Distance with blast gate screw: 5.7 m Pressure: 1.7 to 4.5 bar Flow rate: 0.17 to 2.19 m3 / h, connection thread: 3/4 "female thread

Oversized wiper seal prevents water leakage and protects the inner part from contamination.
Proven performance and reliability in millions of installations.
The self-cleaning sector adjustment port prevents dirt build-up.

Installation and maintenance

The fixed sector can be changed to simplify the installation.
New self-cleaning sector adjustment screw facilitates maintenance.
Simple sector adjustment from above, no special tools required.
A blast grinder allows the Distance to be reduced up to 25% without nozzle replacement

Durability

Standard rubber cover as extra protection.
Extra strong cover for use in green areas.
Powerful return spring ensures reliable retracting of the riser.
Pressure-activated, multifunctional wiper seal protects inner part from contamination and ensures reliable retraction and extension of the riser.
Additional O-rings and seals provide extra protection against sandy water.

Characteristics:

Throwing range: 7.6 to 15.2 m
Throwing distance with blast grub screw: 5.7 m
Pressure: 1.7 to 4.5 bar
