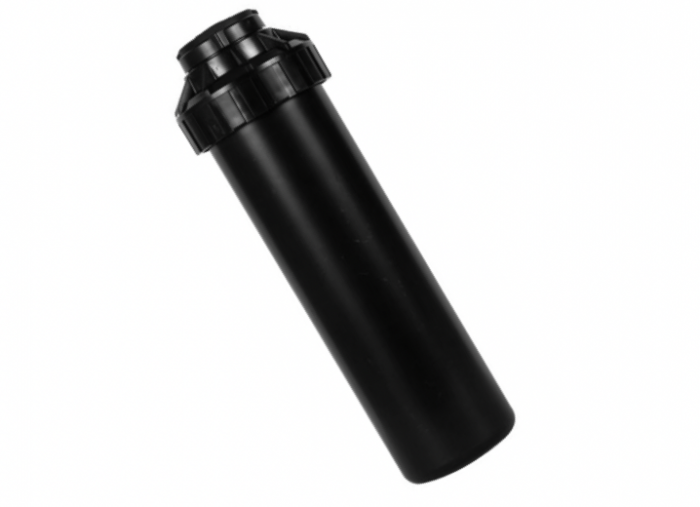

Rain Bird® Pop up Nozzle 3504-PC
Reach: 4.6 to 10.7 m
Reach with Jet stub screw: up to 2.9 m
Pressure: 1.7 to 3.8 bar
Flow rate: 0.12 to 1.04 m3 / h
Connection thread: 1/2 "(15/21) Female
Pitch circle setting: 40 to 360 °
Rain Bird® Pop up Nozzle 3504-PC
(40-360ø) incl. Nozzle
Reach: 4.6 to 10.7 m, with Jet stub screw: up to 2.9 m
Pressure: 1.7 to 3.8 bar
Flow rate: 0.12 to 1.04 m3 / h
Connection: 1/2 "(15/21) Female
Powerful - Rain Curtain ™ Nozzles.
10.2 cm (4 ") Riser height (measured from the center of the nozzle)
Reliable - guaranteed.
Nozzles with Rain Curtain technology
Nozzle set with six Rain Curtain nozzles
Big drops for even performance
Effective close-range irrigation
Even water distribution over the entire range
Installation and maintenance
Simple sector adjustment with a small flat screwdriver
Blast grinder allows the reach to be reduced to 25% without nozzle replacement
Self-regulating; No need to change the stator when changing nozzles
Easily removable filter
Easy to change nozzles
Many design options
The pop-up sprinkler series 3500 are available as 4 "and SAM models
Outlet shut-off valve Seal-A-Matic ™ (SAM) as an option; remains closed up to 2.1 m height difference. Prevents erosion and puddling in lower-lying sprinklers
Rubber cover and self-cleaning sector adjustment screw protect the sprinkler from dirt and optimize reliability
A model for full circle and pitch circle (40 to 360 °)
Durability
Oil and grease-free gearbox for long-lasting and reliable operation
Multifunctional wiper seal protects inner part from dirt and ensures reliable retraction and extension of the riser
Characteristics
Reach: 4.6 to 10.7 m
Reach withJet stub screw: up to 2.9 m
Pressure: 1.7 to 3.8 bar
Flow rate: 0.12 to 1.04 m3 / h
Connection thread: 1/2 "(15/21) Female
Pitch circle setting: 40 to 360 °
| Product type | Nozzle |
|---|---|
| Brand | RAIN BIRD® |
-
