GEFA Splice Bodkin 10T

Hohltau Splicing Awl XL 10 t

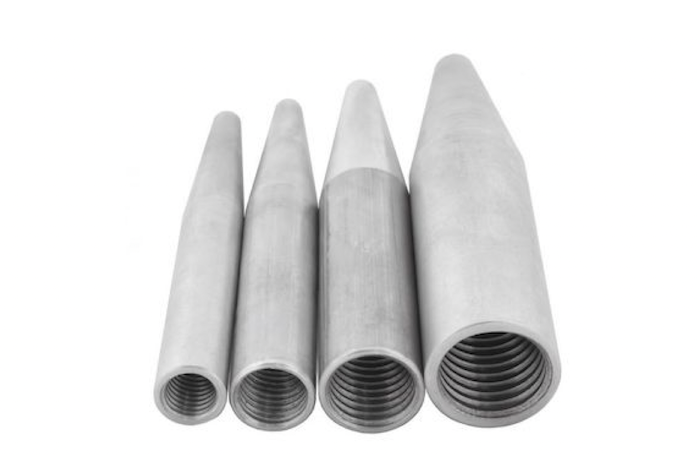

Solid aluminum splicing awl with internal thread. Suitable for GEFA hollow ropes with a diameter of 30 mm.

Hollow ropes can generally be installed as a single-component system with abrasion protection, or as a multi-component system, for example with loop straps.

Many intermediate sizes as well as ropes with higher breaking loads for individual and economical solutions
Dyneema ropes of 12 and 20 t suitable for static securing

Installation:

In accordance with BG regulations and the FLL / ZTV Baumpflege regulations (Additional Technical Contract Conditions and Guidelines for Tree Care)
Tools: splicing awl, special adhesive tape, special scissors
Lashing straps prevent the loop straps from slipping on smooth branches or stems

Product features:

Braided synthetic ropes without rope core
Lightweight and durable
Stable spliced connections for maximum safety
Higher initial breaking load due to fiber count and braiding type
Made in Germany
Various elongation variants
Breaking indicator yarn for early detection
Special protective sleeve GEFAprotect®

INFO: Splicing

Splicing is the break-resistant, permanent, non-detachable connection of ropes by a specific type of interweaving. In principle, when splicing braided hollow ropes, the rope end is pushed back through the hollow core of the rope over a defined length. The resulting connection gains its strength from the fact that the hollow core contracts under load and firmly grips the rope end located inside.
