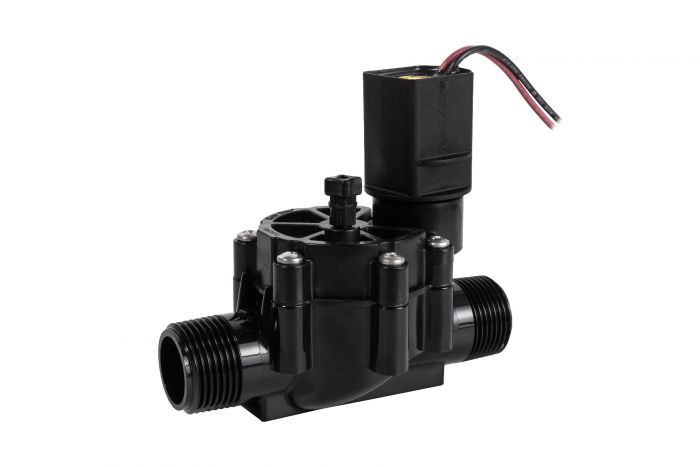

Solenoid valve 100DV-MM 9V/1AG

SKU
28.3.01.100.009.1

Rain Bird® Pulse-controlled solenoid: 9V - 1 inch external thread.

Two filters ensure maximum reliability
Pressure-controlled, durable membrane
Energy-saving magnet coil with protective coating and 200 micron filter

In stock
€69.99
* zzgl. 19% MwSt., zzgl. Versandkosten
  • Free delivery Fast delivery
  • Quality and service For Professionals

Solenoid valve 100 - DV-MM 9V / 1 "AG - Rain Bird®

Two filters ensure maximum reliability
Pressure-controlled, durable membrane
Energy-saving magnet coil with protective coating and 200 micron filter

Easy maintenance

- Flow regulation with type series dVf
- Open manually without discharging the discharge water by a quarter turn of the solenoid coil
- External drain plug to purge the system manually during installation and when starting the system

Versatile

- Continuation form (DV, DVF and DV-MM)
- With 1 "AG x AG (BSP): 100-DV-MM and 100-dVMM LESS
- With pulse-controlled solenoid coil: 075-dV- 9V; 1"IG(BSP) 100 DV-9V and 1" AG(BSP)100-dV-MM-9V
- Suitable for low flow applications and for Xerigation® when a RBY filter is installed behind the valve

Reliable

- Robust PVC construction
- Phillips screws made of stainless steel

Flow rate: 075-dV: 0.24 to 4.5 m3 / h
Note: for flow rates below 0.75 m3 /h or for micro-irrigation, it is recommended to install the filter PRf-075-RBY behind the valve.
100-dV, 100-dVf and 100-dV-MM: 0.24 to 9.0m3 / h
Pressure range: 1 to 10.4 bar
Temperature: 43 ° C max.
Note: DV AG x AG is not for flow rates
recommended over 6.8 m3 / h


ELECTRICAL SPECIFICATIONS

Magnetic coil: 24 V - 50 Hz
Starting current: 0.30 A (7.2 VA)
Operating current: 0.19 A (4.6 VA)
Not to use with decoder systems





More Information
Product type Valve
Brand RAIN BIRD®
