Rain Bird® rain sensor
For measuring precipitation. For use in the home garden and sports field area.
Adjust rainfall from 5mm to 20mm by turning the dial.

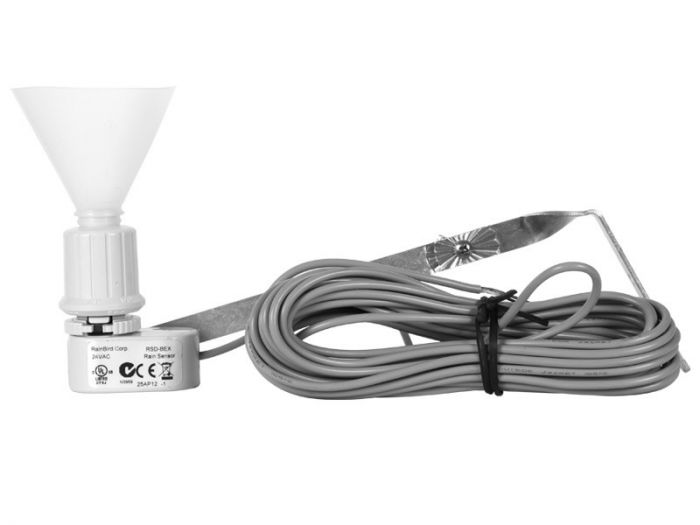

Rain sensor RSD-BEx - Rain Bird®
The rain sensor RSD is a device for measuring precipitation for use in the home garden and sports field area with 24 VAC control units. It helps save water and extends the life of a sprinkler system by eliminating unnecessary irrigation cycles by measuring the amount of rainfall in sufficient rainfall - including funnels.
Compatible with all 24VAC controllers, - Rain sensor interface
Several settings of rainfall from 5 to 20 mm
Adjustable ventilation ring for determining the drying time
High-quality, UV-resistant polymer housing resists weathering
Robust bracket and arm made of aluminum (15.2 cm)
7.6 m UV-resistant extension cable for convenient connection to sprinkler control units
Do not use with high voltage devices!
Capacity: for up to three 24 VAC / 7 VA solenoid coils per station + one main valve
Cable: 7.6 m long extension cable (2 x 0.5 mm2)
|Product type||Control units|
