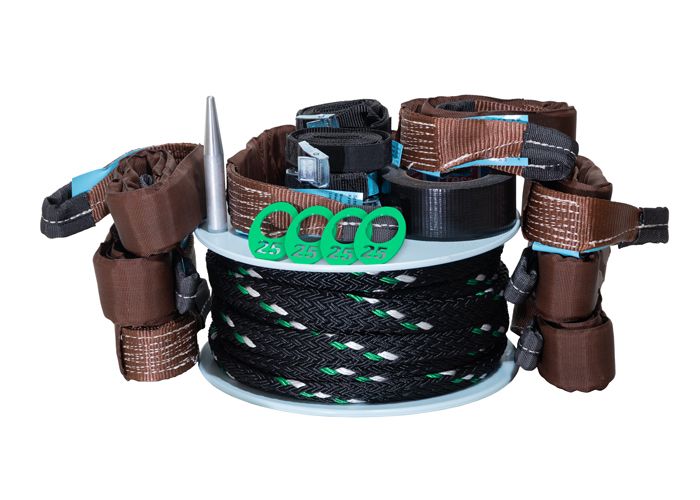

GEFA hollow rope 4t classic sling set

for 4 connections, consisting of:
25 meter Classic GEFA Hollow Rope 4T Breaking Load
1 Splice Bodkin
a Role of special Duct Tape
4 Lashings with expansion element
2 Tree Crown slings 0,75 meter long
4 Tree Crown slings 1,00 meter long
2 Tree Crown slings 1,25 meter long
1 Meter year identifier

Hollow Rope 4 t classic / Loop Set

Starter set with pre-fabricated loops.

Hollow ropes can generally be installed as a single-component system with abrasion protection, or as a multi-component system, for example with loop straps.

Many intermediate sizes as well as ropes with higher breaking strengths for individual and economical solutions
Dyneema ropes of 12 and 20 t suitable for static securing

Installation:

According to BG regulations and the FLL / ZTV Tree Care regulations (Additional Technical Contract Conditions and Guidelines for Tree Care)
Tools: splicing fid, special adhesive tape, special scissors
Lashing straps prevent the loop straps from slipping on smooth branches or stems

Product characteristics:

Braided synthetic ropes without a rope core
Lightweight and durable
Stable connections via splicing for maximum safety
Higher initial breaking strength due to fiber count and braiding method
Made in Germany
Different elongation variants
Breaking indicator yarn for early detection
Special protective sleeve GEFAprotect®

TIP:

Foreign material inserted into the hollow rope can lead to weak points and reduced breaking strength.

Specifications:

Hollow ropes made of polyester (PES) 2/4/7/8/10 t, indicator yarn green
Hollow ropes made of polyamide (PA) 2/4/7/8/10 t, indicator yarn blue
Hollow ropes made of the high-tech fiber Dyneema 12/20 t without indicator yarn
2/4 t available on 100 m spools
7/8/10/12 t available on 50 m spools
20 t Dyneema rope available by the meter or on a 25 m spool

Accessories:

Abrasion protection GEFAprotect®: loop strap on roll

Pressure-distributing properties due to wide, stable contact surfaces (dimensions: 50 mm, 75 mm and 100 mm wide)
Saves material and storage costs in load ranges up to 10 t
Protects bark, cambium and the internal hollow rope fibers from damage
Practical 25 cm markings facilitate cutting to length

Annual identification rings made of plastic

Simplified inspection using established annual colors
Suitable for hollow ropes

Lashing straps

Provide grip on smooth stems
For combination with protective sleeve
Protection against cutting in

Protective sleeves

Pressure distribution and abrasion protection
Increase the service life of the safety components and protect the cambium

Tools:

Splicing fid in 4 different diameters
Special adhesive tape
Special scissors
