STOCKOSORB® comprises water storage granules with hydrogels which can be used in most gardening situations. It stores the vital element water in significantly higher quantities and thus minimises water and nutrient losses caused through seepage, evaporation and surface drainage, and ensures the yield potential of soils and substrates.
Young trees require special care and consistent watering in the root zone during their crucial early years of growth.
The services of GEFA in the field of irrigation are summarized under the brand GREENDROP®. Perfectly tailored to the needs of green spaces, modern technology from leading manufacturers ensures uniform humidification throughout the year.
The effective answer to water shortages and the resulting growth problems in new plantings, because 100% of the water provided reaches the roots. Additional protection against mowing damage and the entry of road salt. The efficient support for tree planting made of UV-resistant material.
Your initial contact in case of queries concerning the securing of young trees and the planning of automatic irrigation systems.
+49 (0) 2151 / 49 47 41

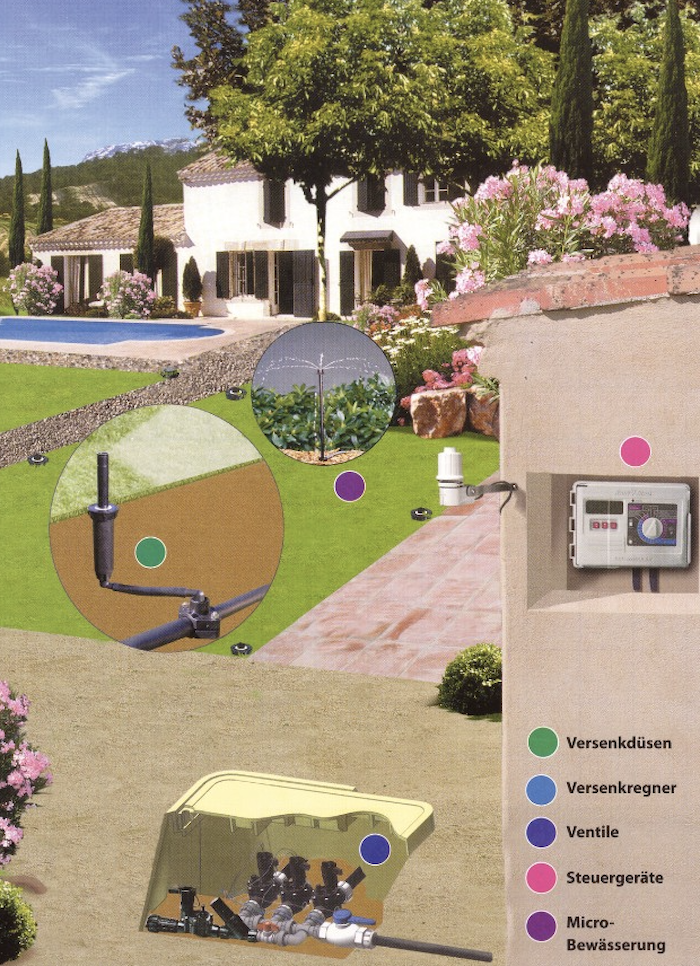

Do your customers still spend a lot of time watering beds and lawns? It doesn't have to be! with By installing an automatic irrigation system, your customers not only have more free time, they can also save water and money.
In addition: Even a longer period of drought is enough to destroy an otherwise impeccable green area. With an appropriate irrigation system, you can counteract such an unwanted horror scenario.
Under the name GREENDROP®, GEFA Fabritz GmbH has developed a program that both Includes planning and delivery of components as well as qualification and support for specialist companies. If you become our partner in the area of ​​GREENDROP®, you will receive the complete planning of your irrigation system from us. In addition, we are YOUR specialist dealer of all NETAFIM ™ and Rain Bird® products.
We keep the most popular items from NETAFIM â„¢ and Rain Bird for the automatic irrigation of house gardens and public green spaces in stock for you. As a rule, you can have it available on the same day when you pick it up or within two working days for delivery.
You can find the complete GREENDROP® product range in the special catalog or in our online shop.
Purchase GREENDROP®

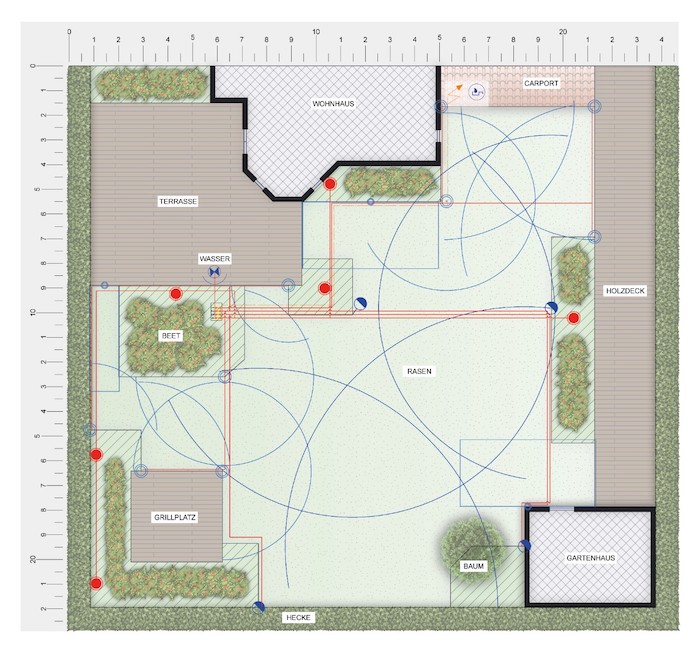

The GEFA team of experts supports you in the planning, design and implementation of GREENDROP® irrigation. In a hand-drawn sketch or, in the best case, a site plan in a CAD program, you can provide us with information on the nature of the soil, the type of planting, as well as the printing and dimensioning of the connection. We plan the irrigation system for you in existing or newly created gardens and green areas.
Contact
Natural precipitation does not fall nearly as regularly as it would be necessary to ensure healthy and lush plant growth. The summers are getting hotter and hotter and a few days without rain are enough to damage the plants. If the rainwater is collected and distributed as required by a sprinkler system, this optimizes the use of water and labor.
Clear yes. Once set up, the system works automatically and does not require any further manual support. The vegetation is optimally watered according to the soil conditions and location and thanks to healthy growth even with reduced fertilizer application. In addition, there is no overwatering, as a rain sensor switches the system off when there is sufficient rainfall. Modern, WiFi-supported control devices compare location data with weather forecasts and thus save even more water.
Use our GEFA GREENDROP® planning service. We plan the best possible solution for your customers with you.
Would you like to position yourself as a landscape architect or landscaping company as an expert in the field of irrigation systems? In regular seminars and training courses, we impart both the basics and the subtleties of automatic irrigation.
More questions?

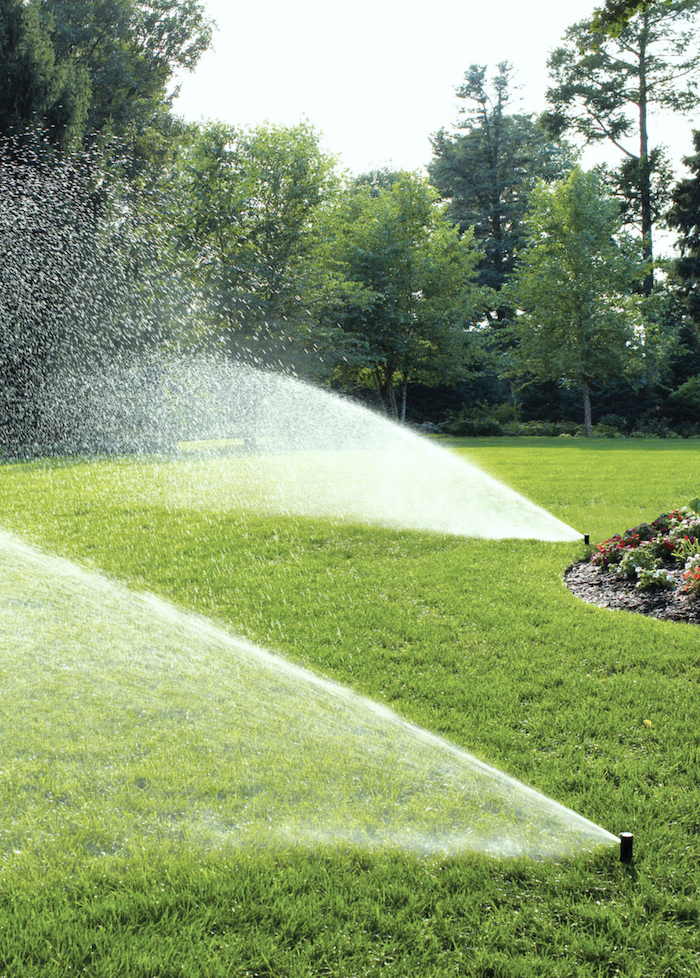

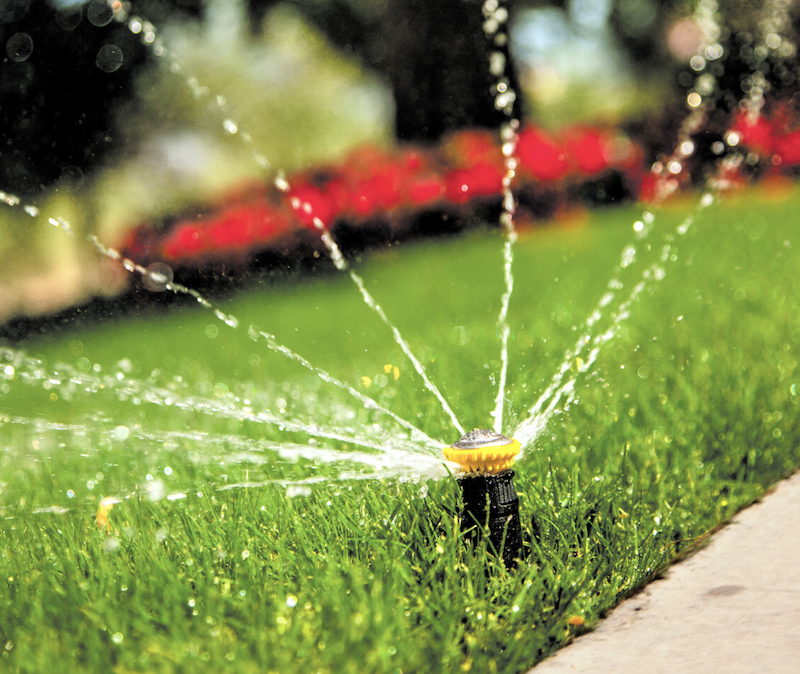

• Ideal for house gardens and green spaces
• Almost invisible
• Climber automatically extends and retracts
• Large drops for even performance
• Even water distribution over the entire throwing range

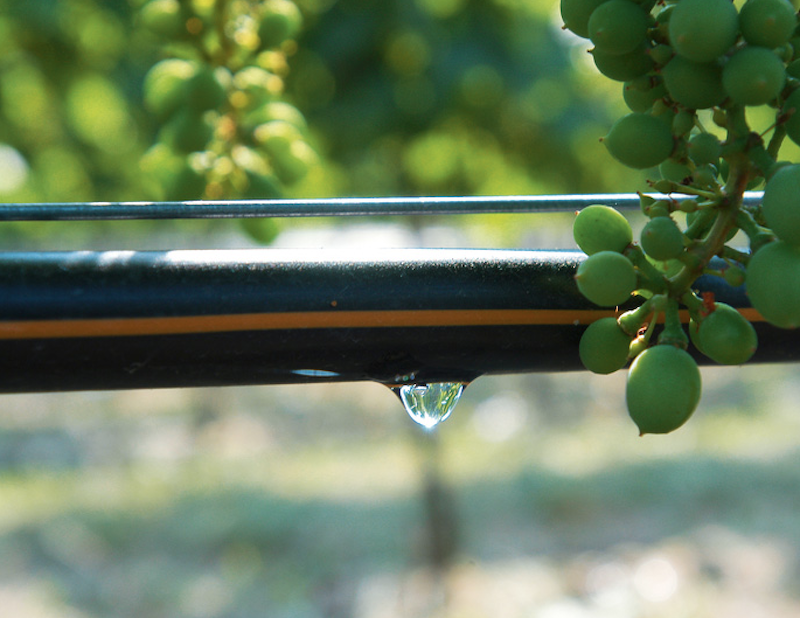

• For watering single plants and beds
• Pressure-compensating drip hoses with leakage protection mechanism
• Saving water through metered addition in the root area
• Can also be laid under loose ground
• Calculates the optimal amount of precipitation
• Program selection for different vegetation areas

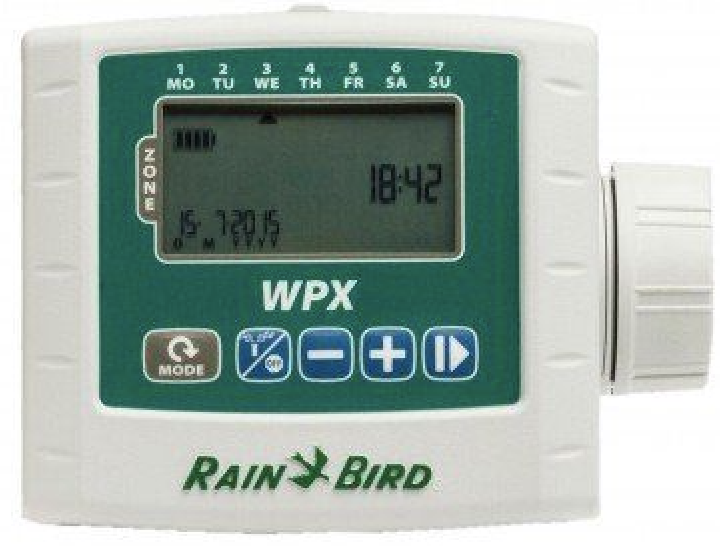

• Automates the duration and time of irrigation
• External control via WiFi via app possible

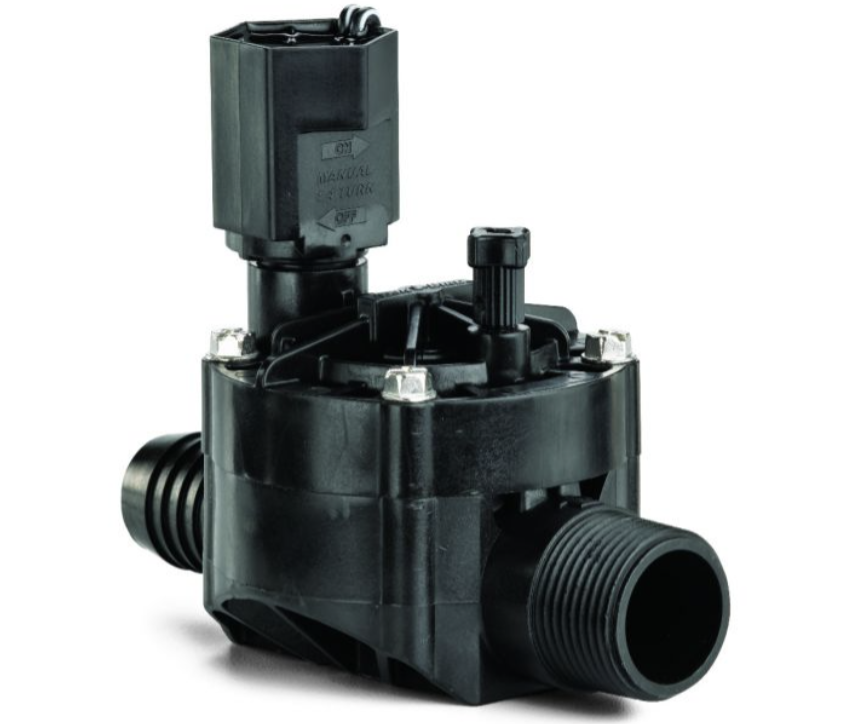

• Controls the water supply to the sprinklers
• Valves with external thread, easy to assemble with plastic fittings
• Maintenance access guaranteed by a protective cover in the solenoid valve box

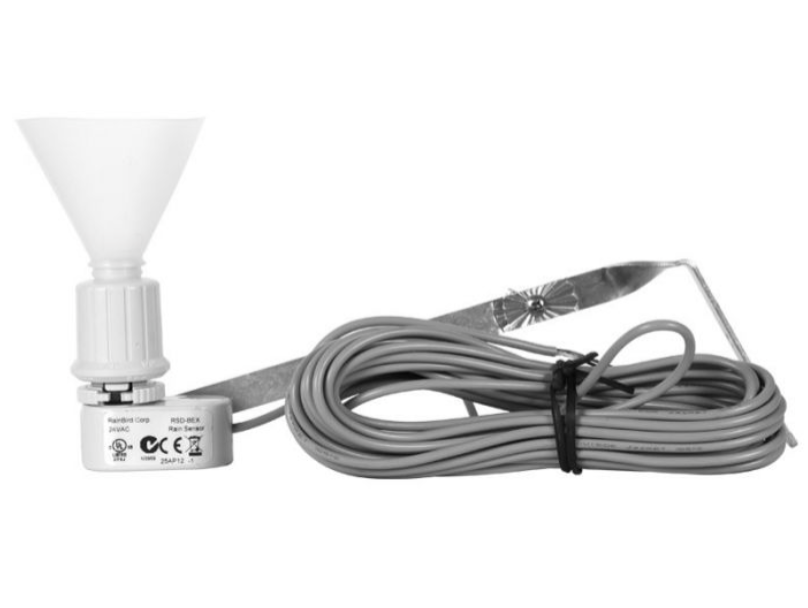

• Interrupts the irrigation in case of natural precipitation
• Saving water
• For maximum ease of use of the irrigation system
• For use in home gardens and sports fields

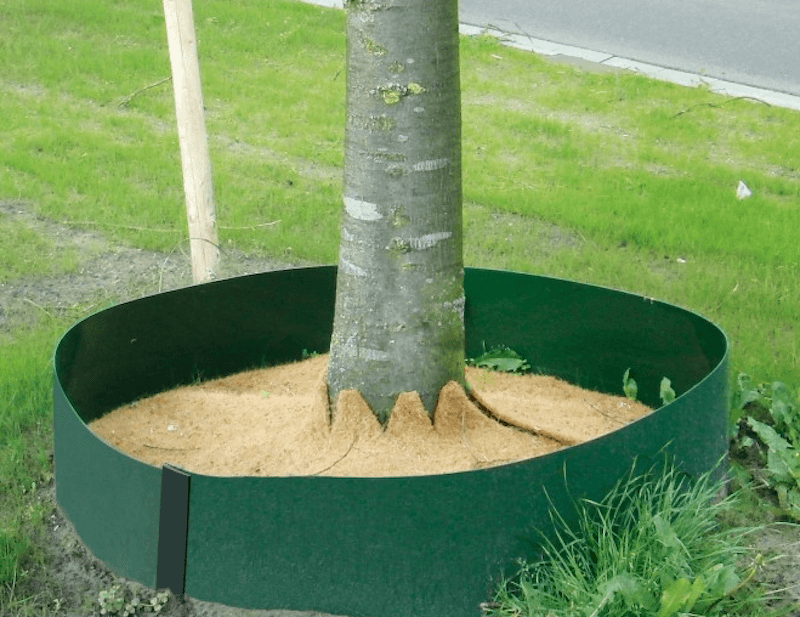

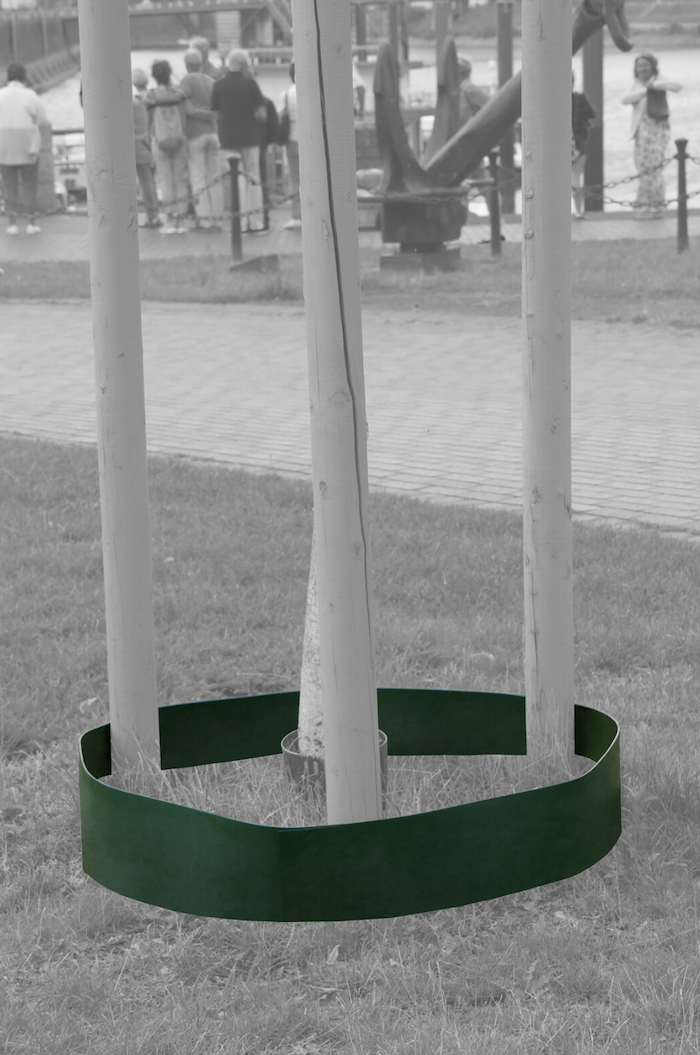

The long-lasting and "growing" variant of the usual pouring rim with a capacity of up to 140 liters (with a diameter of 95 cm). The pouring rim formed by excavated soil is one of the absolute basics in gardening and landscaping. This method is now being optimized with the GEFA pouring rim.
A 30 cm high - made of 3 mm thick special plastic (LDPE) - ensures the big one Filling capacity and at the same time protects against unwanted road salt entry in the winter months.
The pouring edge is inserted 10 cm into the ground and the 20 cm remaining above ground, e.g. B. with the fix Special adhesive tape fixed against each other. We recommend adding growth to the overlap. In this way, the pouring edge can be adapted to further root growth in the future. The new pouring rim clip is now available for even easier fixation. This simply connects the two ends and saves you from sticking with the GEFA special adhesive tape.
The GEFA pouring rim is UV-resistant, 100% recyclable and, like the clips, can be reused.
• high filling capacity (Ø 95 cm = 140 liters) • Adaptation to the root growth possible • Easy to fill and therefore cost effective • protects against the direct entry of road salt • reusable
Purchase GEFA pouring edge

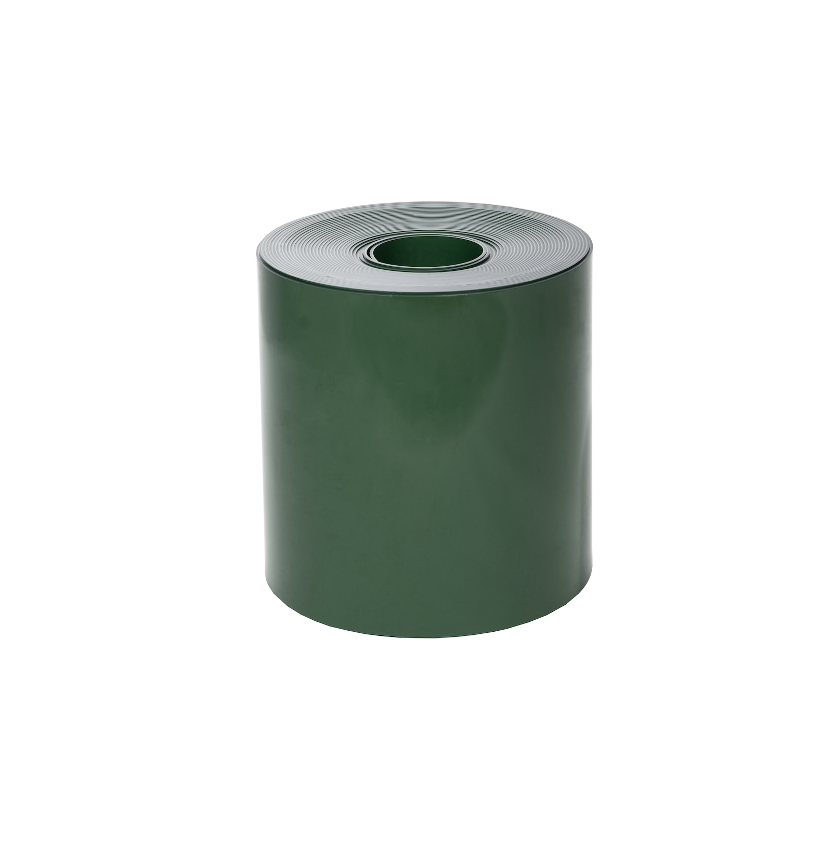

for stable, optimal irrigation of the root system of trees in urban environments. 20 m roll of LDPE edge, 3 mm thick, 30 cm high, dark green.

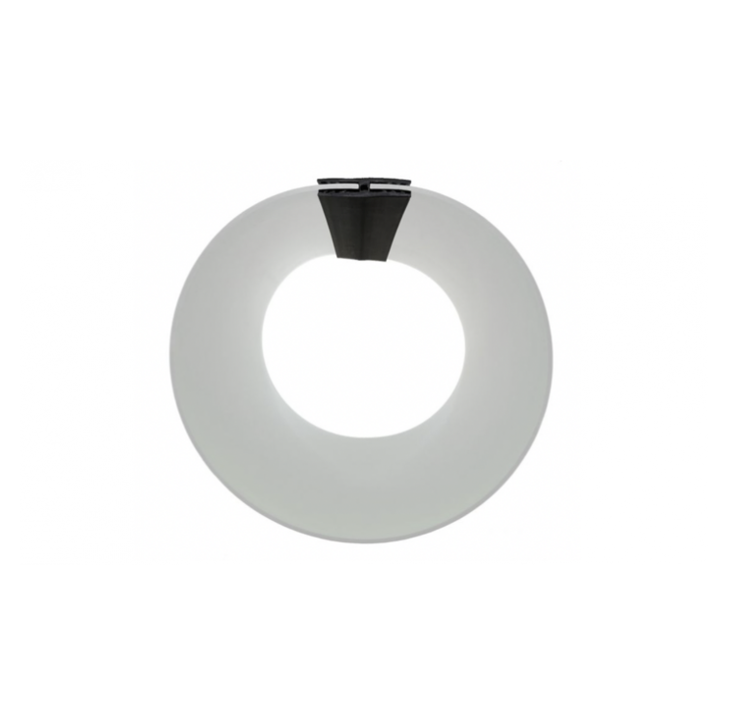

for easy connection of the ends of a pouring edge without sticking for 3 mm pouring edge.

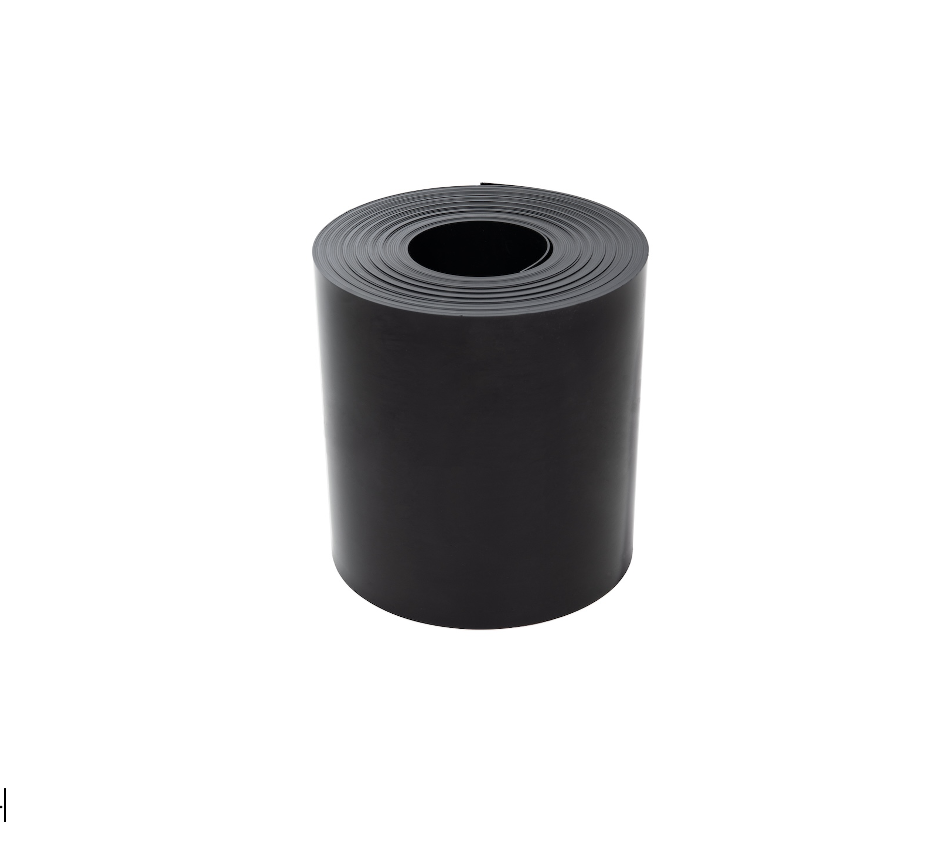

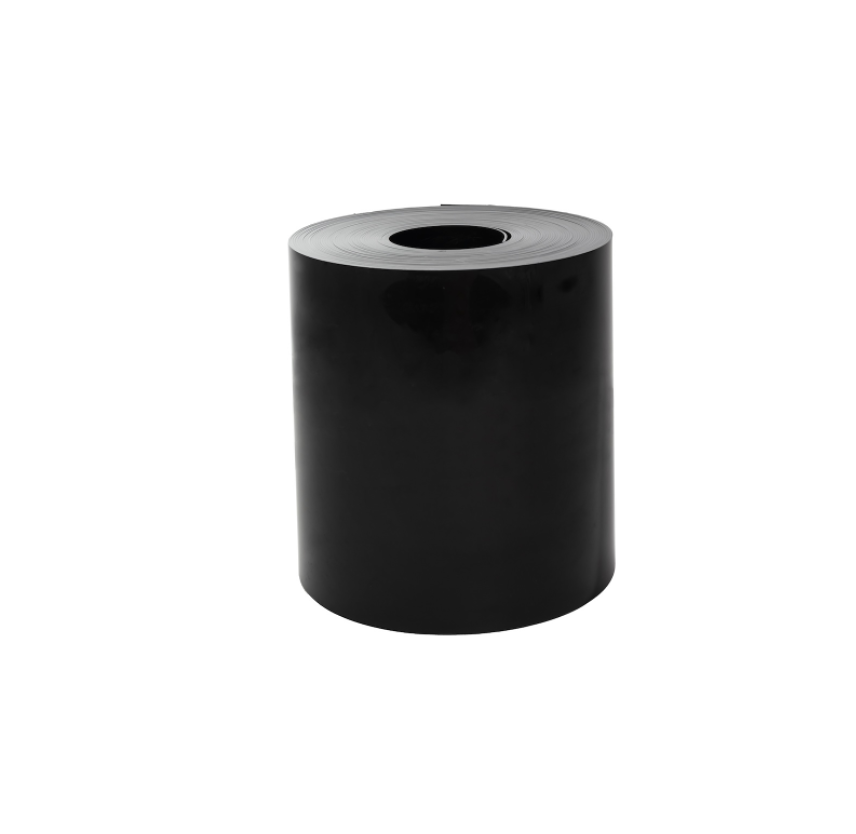

for optimal irrigation of the roots of trees. 25 m roll, 30 cm high, 1.5 mm, recycled HDPE, UV-resistant, not color-fast, anthracite.
1 roll of pouring edge LPDE corresponds to 20 m. Depending on the diameter of the pouring edge, 1 roll can be calculated as follows:
| Root ball | 1 roll | Quantity | Couplings |
| 57 cm | 11 trees | 1.78 m | 11 |
| 73 cm | 8 trees | 2.27 m | 8 |
| 100 cm | 6 trees | 3.12 m | 6 |
| 133 cm | 4 trees | 4.16 m | 4 |

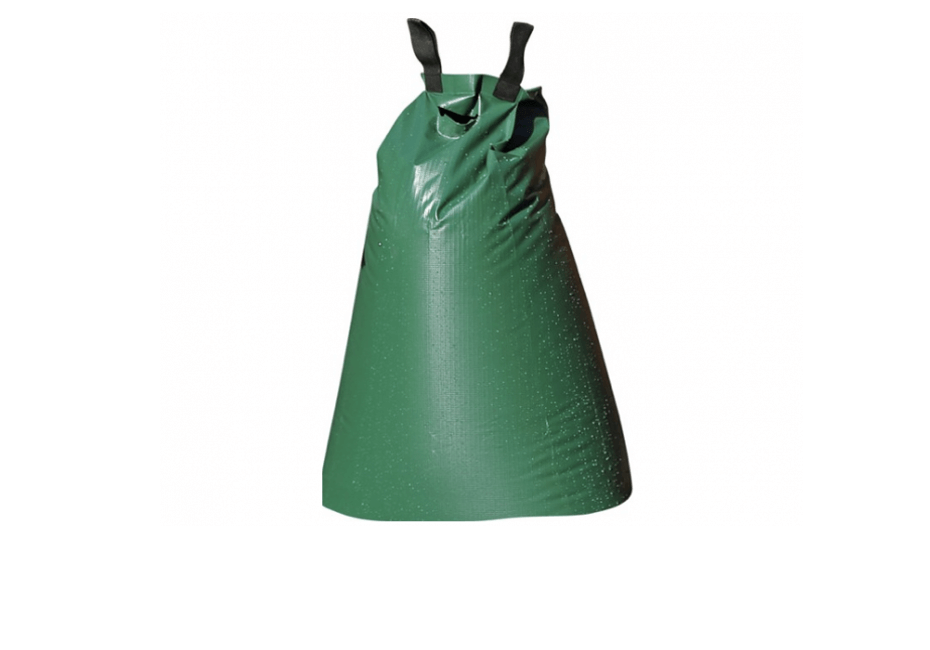

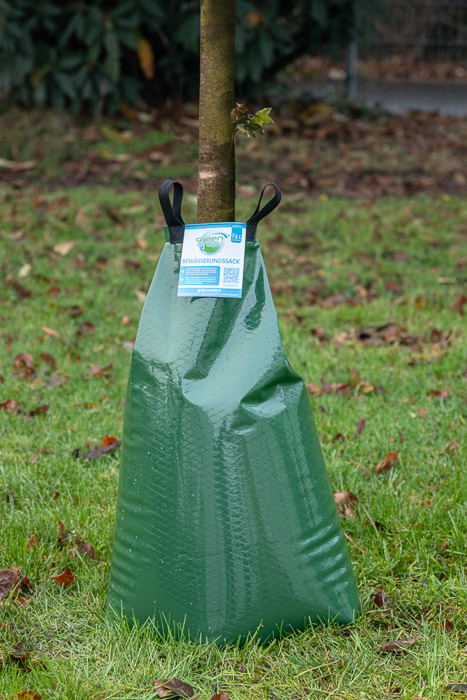

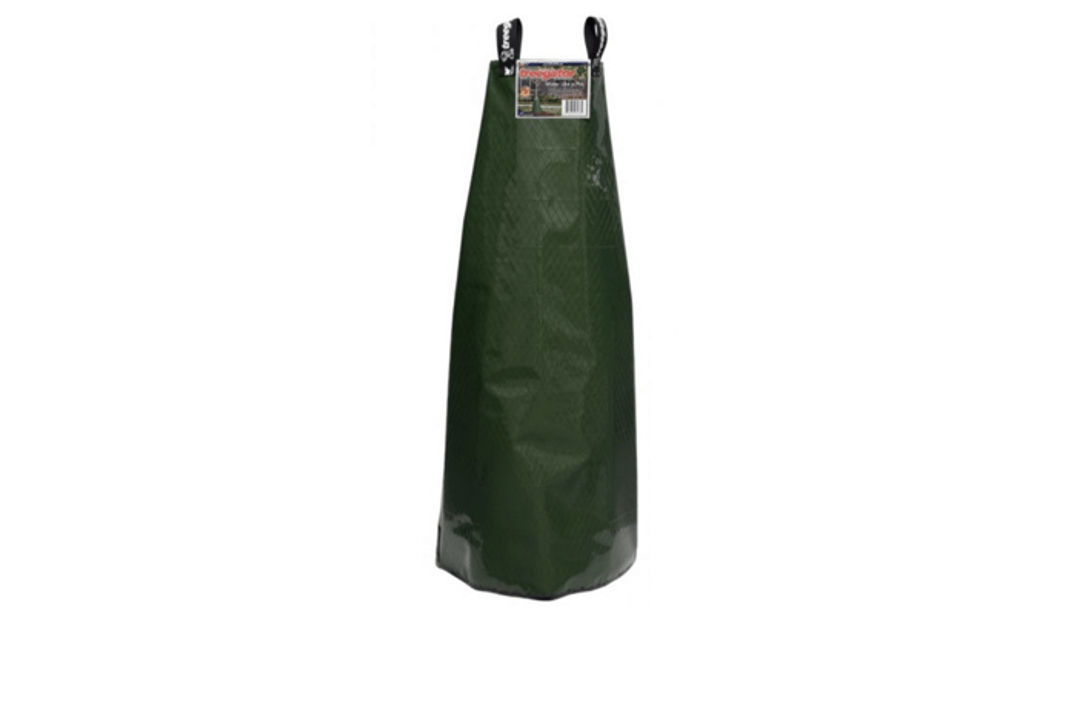

Robust watering bags are suitable for mobile irrigation for new plantings or for the maintenance of existing trees in drought conditions.
Depending on the product variant, the irrigation bags hold 50 - 60 liters of water. The filling quantity varies depending on the size of the trunk. The water is released directly to the root area through a small opening in the bottom. Depending on the manufacturer, the draining time is approx. 5 - 8 hours per filling.
1. Place the watering bag around the tree. 2. Pull the zipper up to the top. 3. Erect the sack using the loops to allow easy filling. 4. The generously dimensioned filler neck is located on the back. 5. Fill in water using a hose until the irrigation bag is full.
A single irrigation bag is suitable for trees with a trunk circumference of 8 cm - 30 cm.
In order to also water existing trees with a trunk circumference of more than 30 cm in dry periods, it is possible to use two or more bags, using Connect zipper. This increases the water capacity to 100-120 liters or more.
Our experts recommend the GREENDROP® irrigation bag.
Bewässerungssäcke kaufen

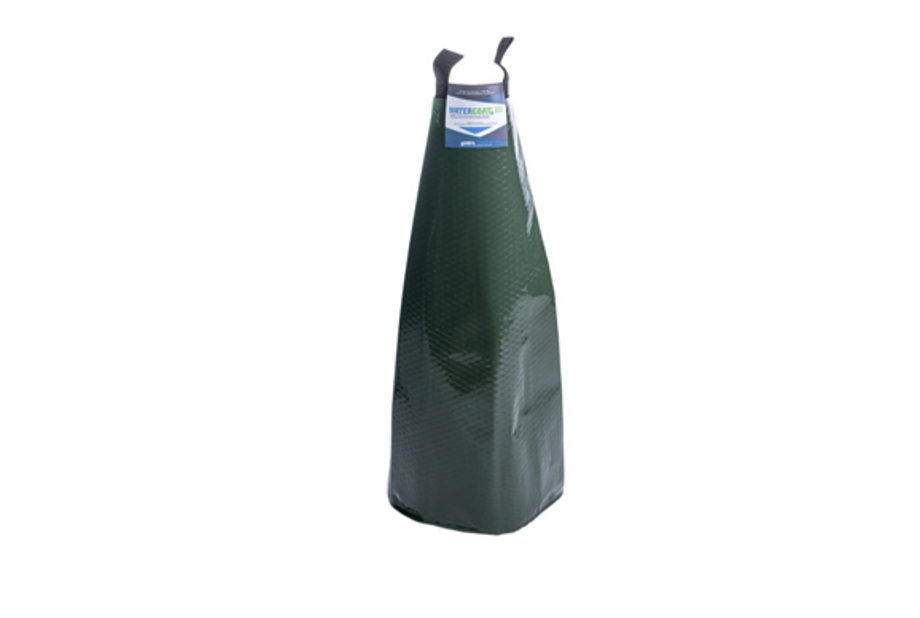

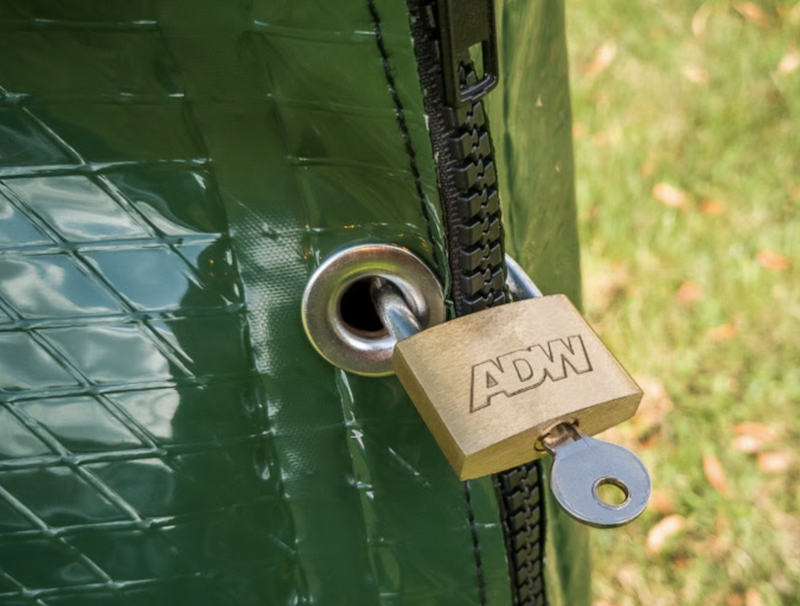

As the theft of the irrigation bags in public spaces has been reported repeatedly in the past, we have launched a version of the Watercoat III with theft protection. Two eyelets on the front of the zipper allow it to be "locked" with a padlock.
This makes it impossible for thieves to remove the bag from the location without damaging it.
Purchase irrigation bags

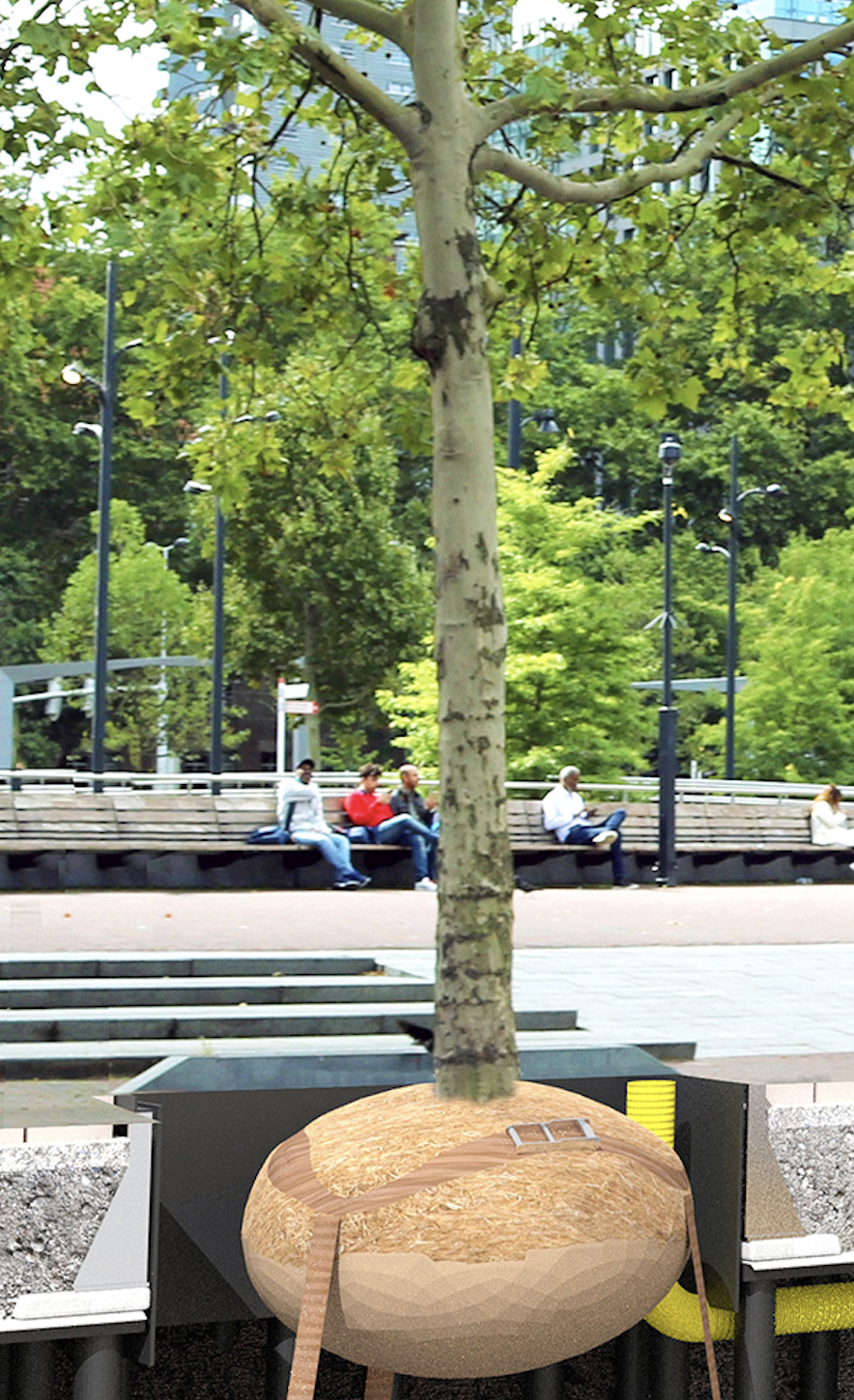

The increased amount of water in dry months naturally also stimulates weeds to grow. A mulch disc directly under the irrigation sack prevents unwanted sprouting and thus also ensures a tidier appearance in urban areas.
Another advantage of a combination of irrigation sack and mulch disc is the more even and flat dripping. The mulching disc soaks up the water and then releases it evenly to the ground.
Often the soils are highly compacted, which makes it difficult for the irrigation bags to drip off optimally. We therefore recommend the use of the wetting agent AquaSmart from ICL. The wetting agent is able to guarantee the wettability of the root zone over a longer period of time. The water can not only penetrate into the surface or felt layer, but also deep into the entire root zone moisten.
Assembly without tools • Reusable • One filling is enough for 2 - 3 days • For new plantings and existing trees • Expandable for larger trunk volumes • Made of sturdy polyethylene and tear-resistant loops • Irrigates the root area in a targeted manner
- Greendrop® irrigation bags, made of PE, capacity max. 60 l - Treegator® watering bags, made of PE. Filling quantity max. 60 l - Watercoat® III irrigation bags, made of fabric-reinforced PVC. Filling quantity max. 60 l - Watercoat® III irrigation bags Secure, with safety eyelets. Filling quantity max. 60 l - Watercoat® III + mulching disc, 80 cm, included. 1x mulching disc. Capacity max. 60 l

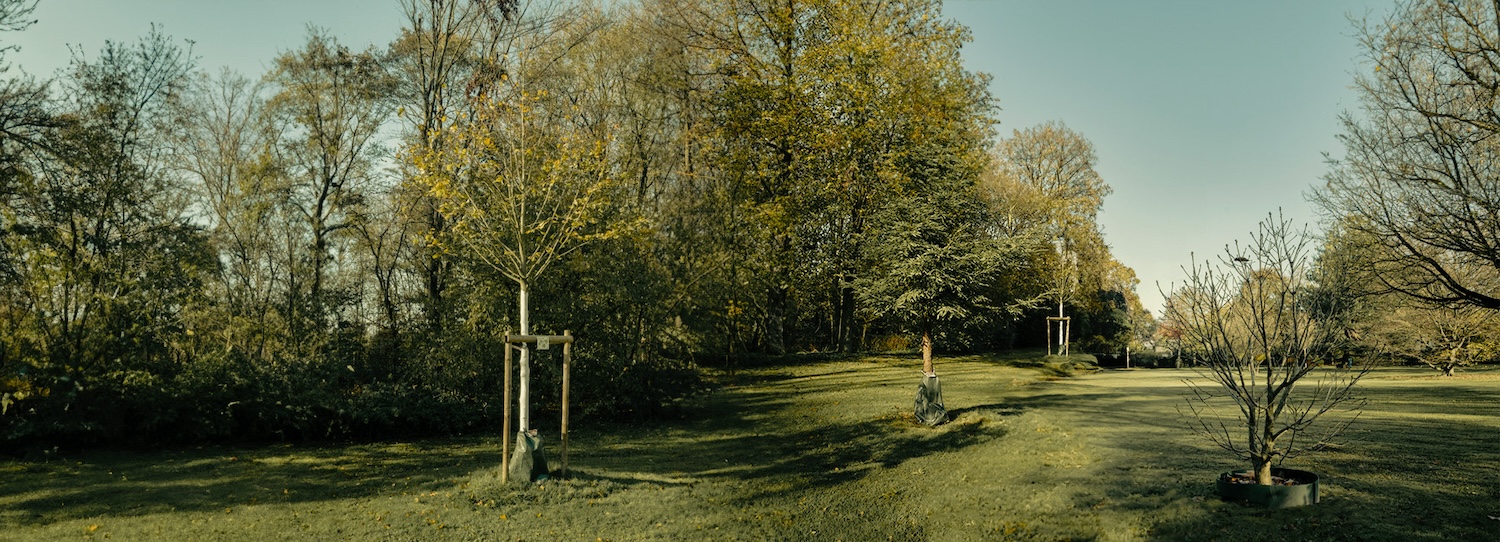

Young trees require special care and consistent watering in the root zone during their crucial early years of growth. At GEFA, you will find a range of high-quality professional products designed for tree and young tree irrigation needs.
During the first years after planting, newly planted trees must be watered regularly to encourage deep root growth. Watering should initially focus directly in the root zone.
According to FLL guidelines, a suitable watering basin must be formed, with its inner edge positioned above the outer edge of the root ball. This basin can be created using existing soil. However, prefabricated systems are now available for targeted watering: watering rims, slow-release watering bags, technical tools for water retention, and systems that can be installed during planting to provide medium- and long-term water and air supply.
NOTE: Watering within the planting pit, such as with drainage pipes, is not suitable for the first years after planting.

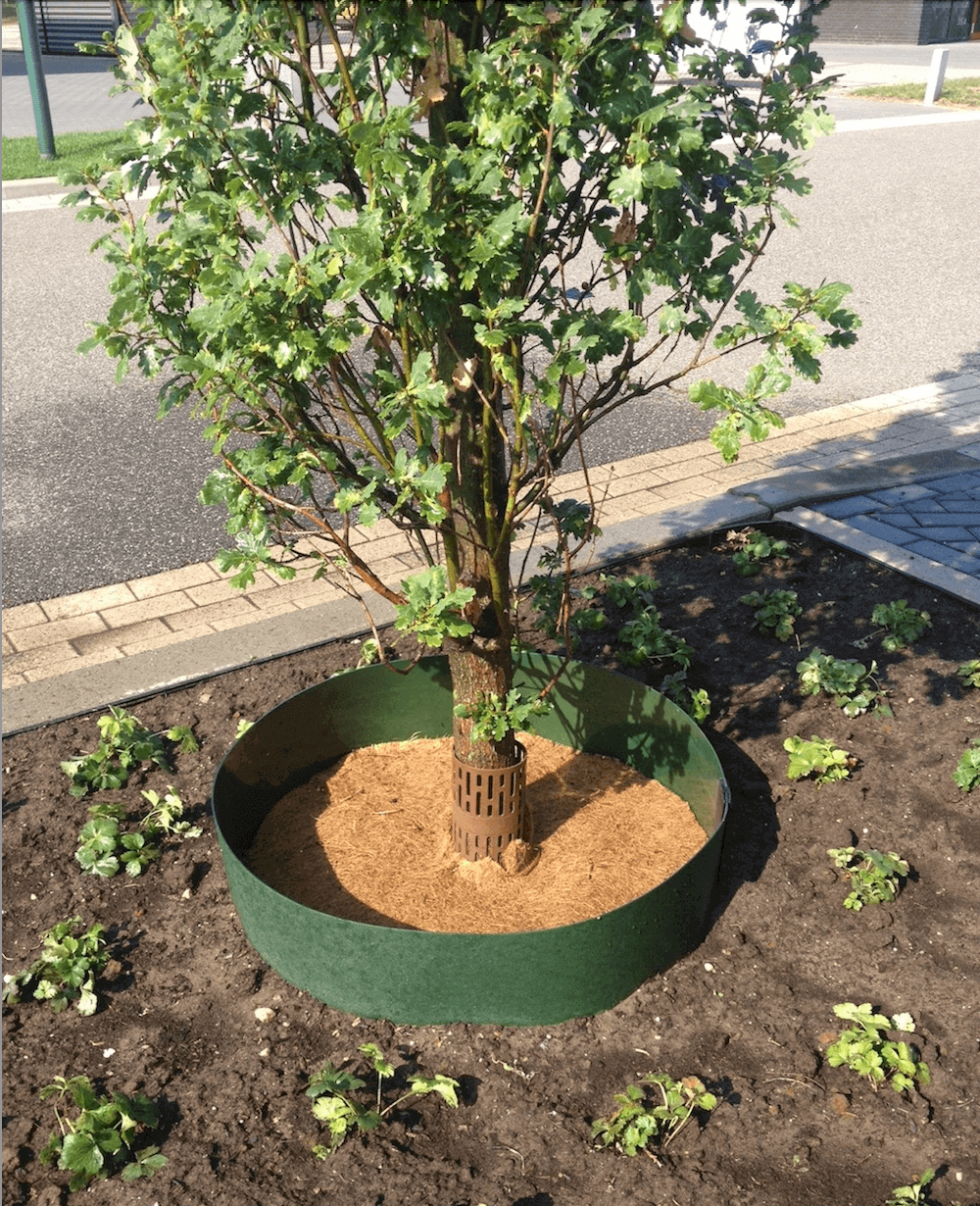

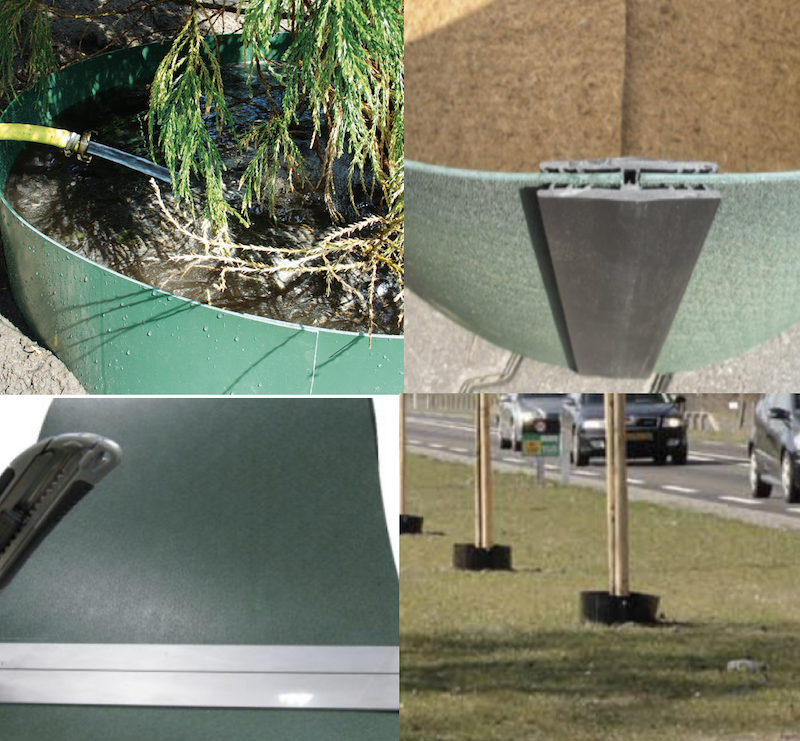

The durable and expandable version of the standard pouring edge, with a capacity of up to 140 liters (at Ø 95 cm). The pouring edge formed by soil excavation is a fundamental tool in gardening and landscaping. This method is now optimized with the GEFA Pouring Edge.
Special plastic
A 30 cm high strip made of 3 mm thick special plastic (LDPE) provides a large filling capacity while simultaneously protecting against unwanted road salt intrusion during the winter months.
Pouring edge installation
The pouring edge is inserted 10 cm into the soil, leaving 20 cm above ground, which can be secured using Fix special adhesive tape. We recommend equipping the overlap with growth allowance so the pouring edge can be adjusted for future root growth. For even easier securing, the new pouring edge clip is now available, which simply connects the two ends together.
Advantages
The inner area of the pouring edge should align with the outer edge of the root ball.
For mobile irrigation of young trees or to minimize drought stress during heat periods, robust irrigation bags are ideal. Depending on the product variant, the bags can hold up to 100 liters of water. The capacity varies depending on the trunk circumference. Water is released directly to the root zone through small openings at the bottom. The drip time is approximately 5 to 8 hours per filling, depending on the manufacturer.
White products exposed to the sun do not heat up as quickly as darker-colored products. We have now applied this physical principle to irrigation bags.

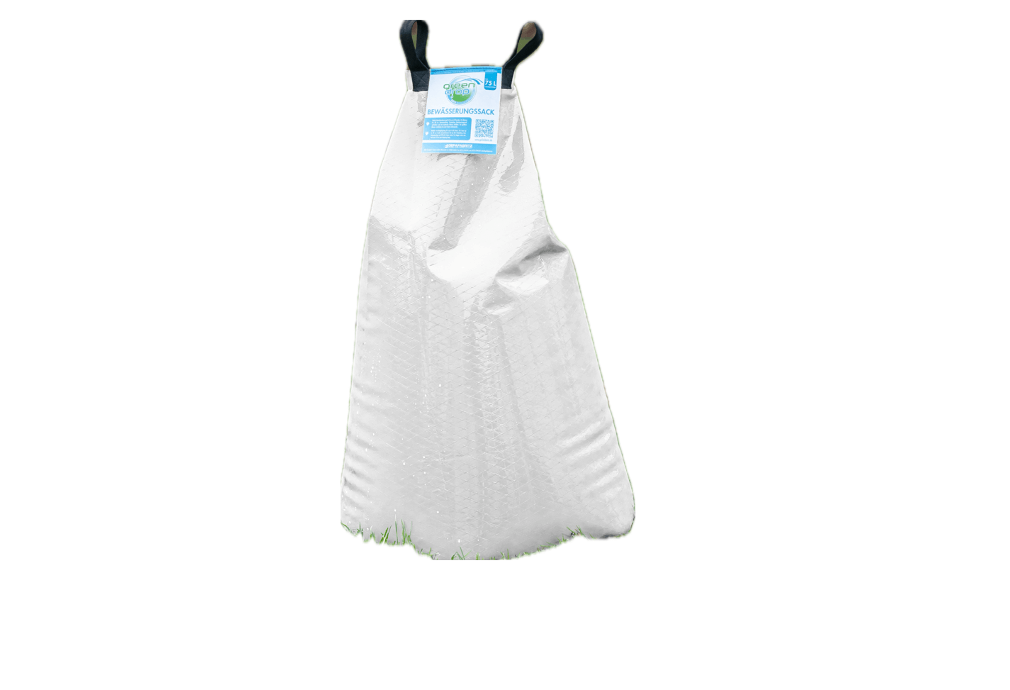

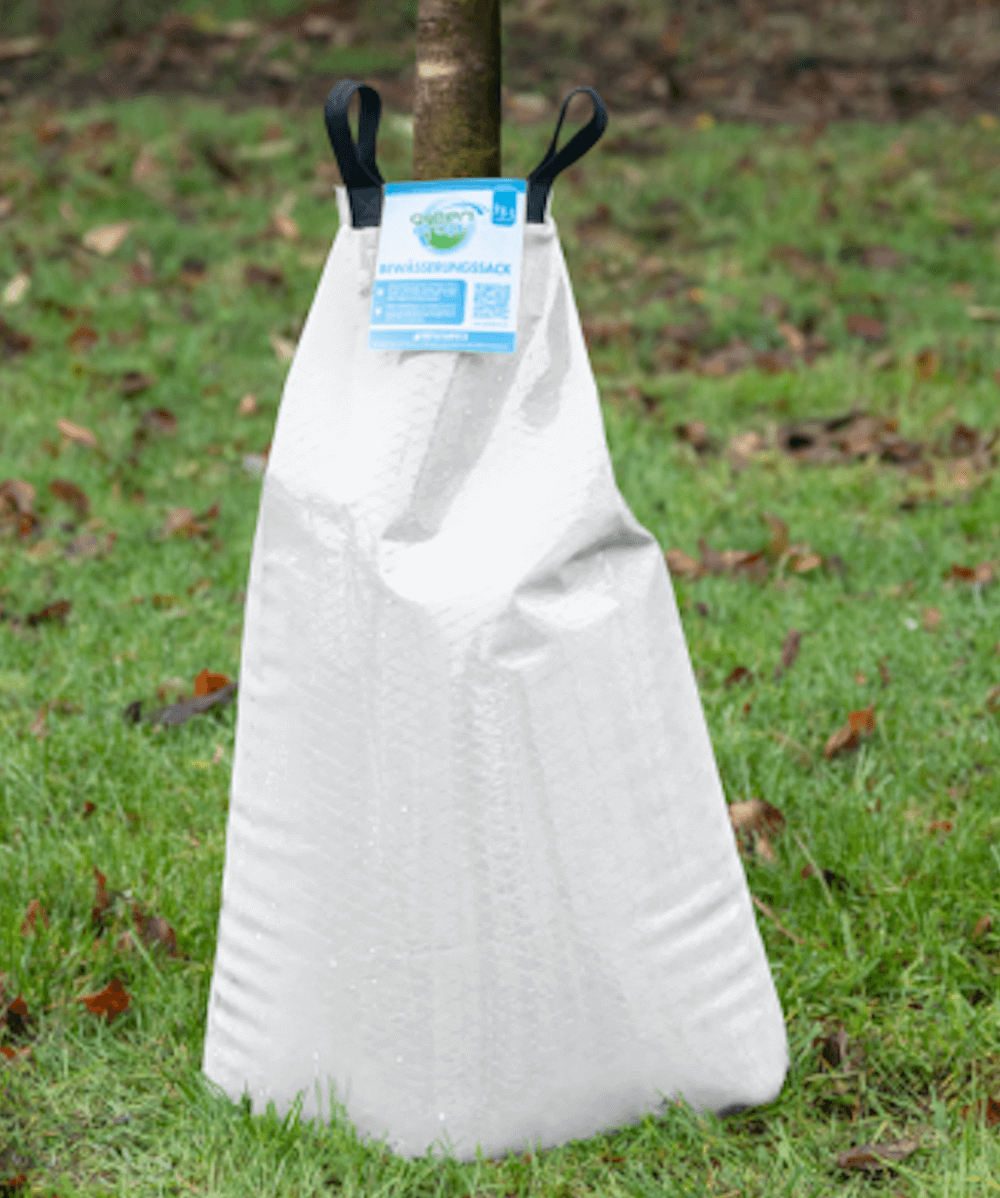

The result is the irrigation bag GREENDROP® “white.”
The background: Some customers reported heat damage to tree trunks caused by green water bags attached directly to the trunk. The water or air between the trunk and the bag can heat up so much that it causes damage. The new irrigation bag GREENDROP® “white” reduces this risk.
Its white color effectively reflects sunlight and prevents the tree trunk from overheating.
In terms of aesthetics, it also offers an advantage – when used in combination with trunk protection paint, it creates a harmonious color scheme.

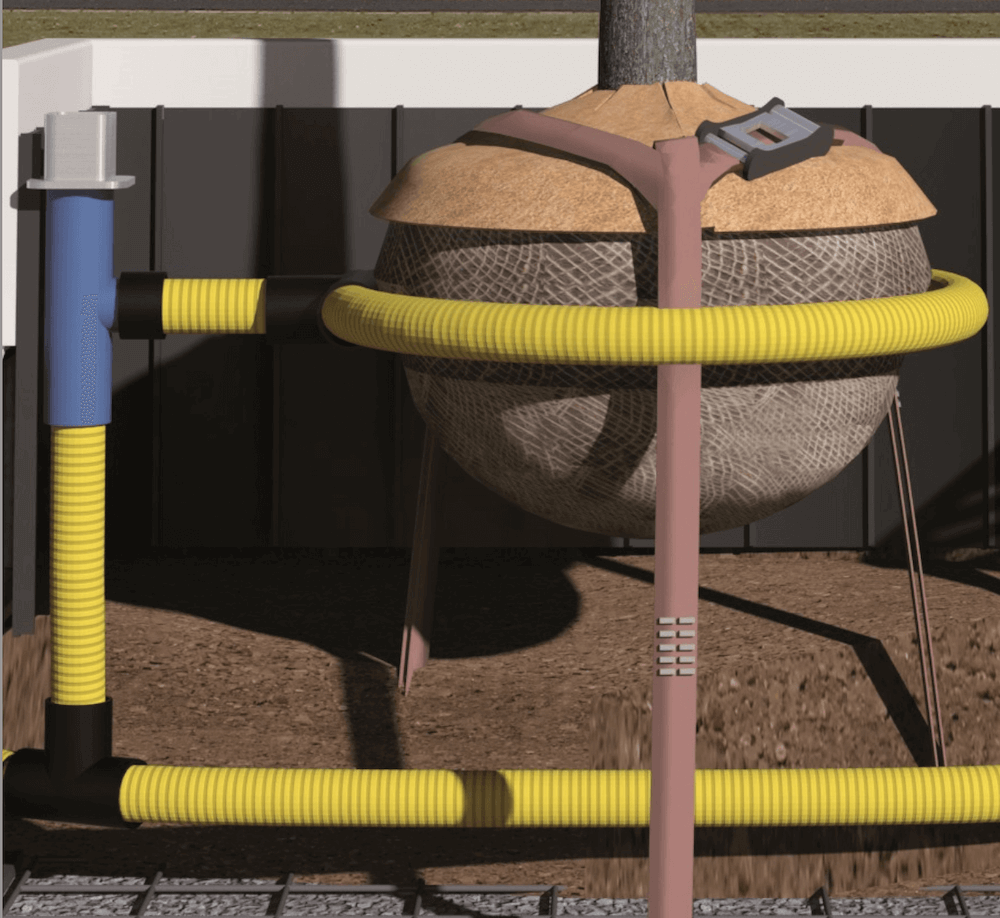

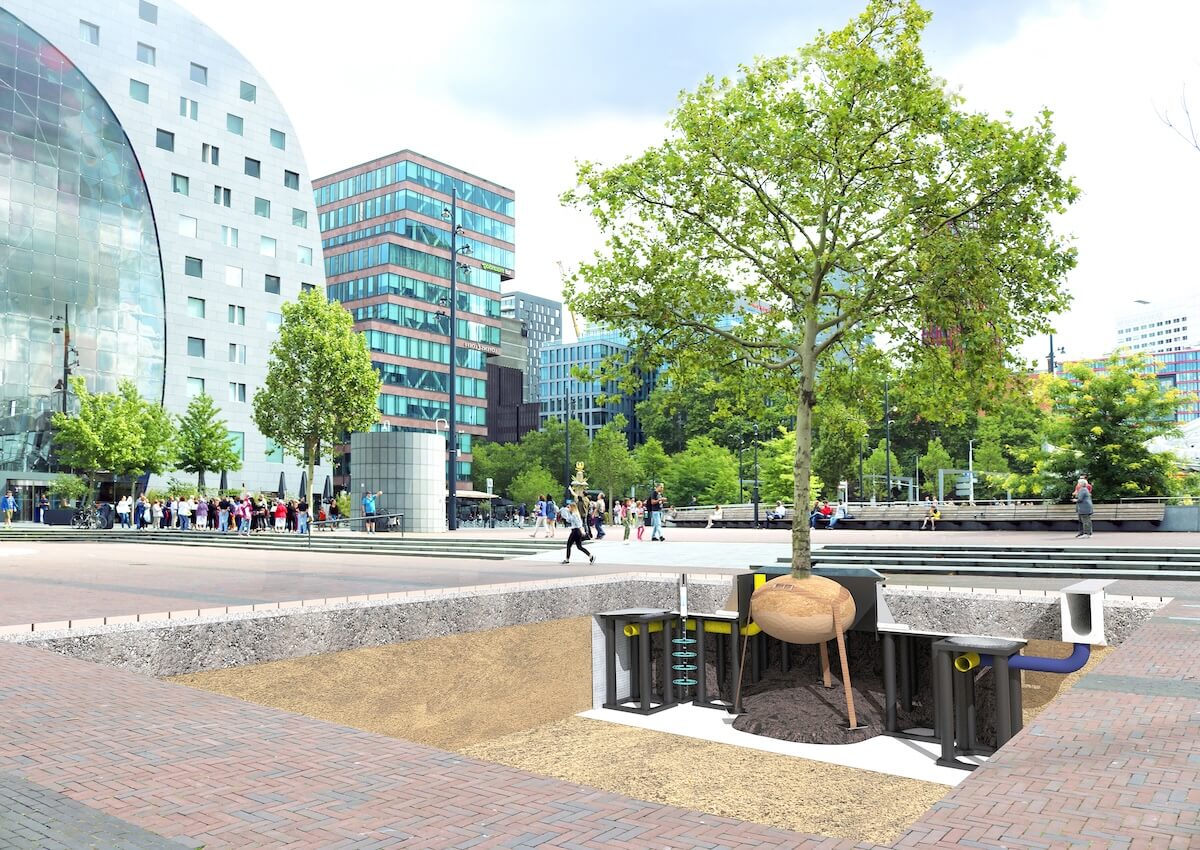

Efficient ventilation and irrigation are essential for the survival of trees in urban areas, especially in planting pits of construction type 2.
The challenges in urban spaces are well-known: restricted site conditions, overbuilt root zones, disturbed soil conditions, severe compaction, and lack of gas exchange.
With conventional systems, there is a risk that irrigation is carried out through the opening intended for ventilation. This challenge was the starting point for the GEFA LUWA® system. It enables both ventilation and irrigation through a single inlet, ensuring that water does not enter the ventilation pipes. The system separator directs water and air separately into their designated pipes/hoses, preventing the chimney effect.
Providing trees in urban environments with water and air during the establishment phase and beyond is one of the main tasks for planners and practitioners in the green industry.

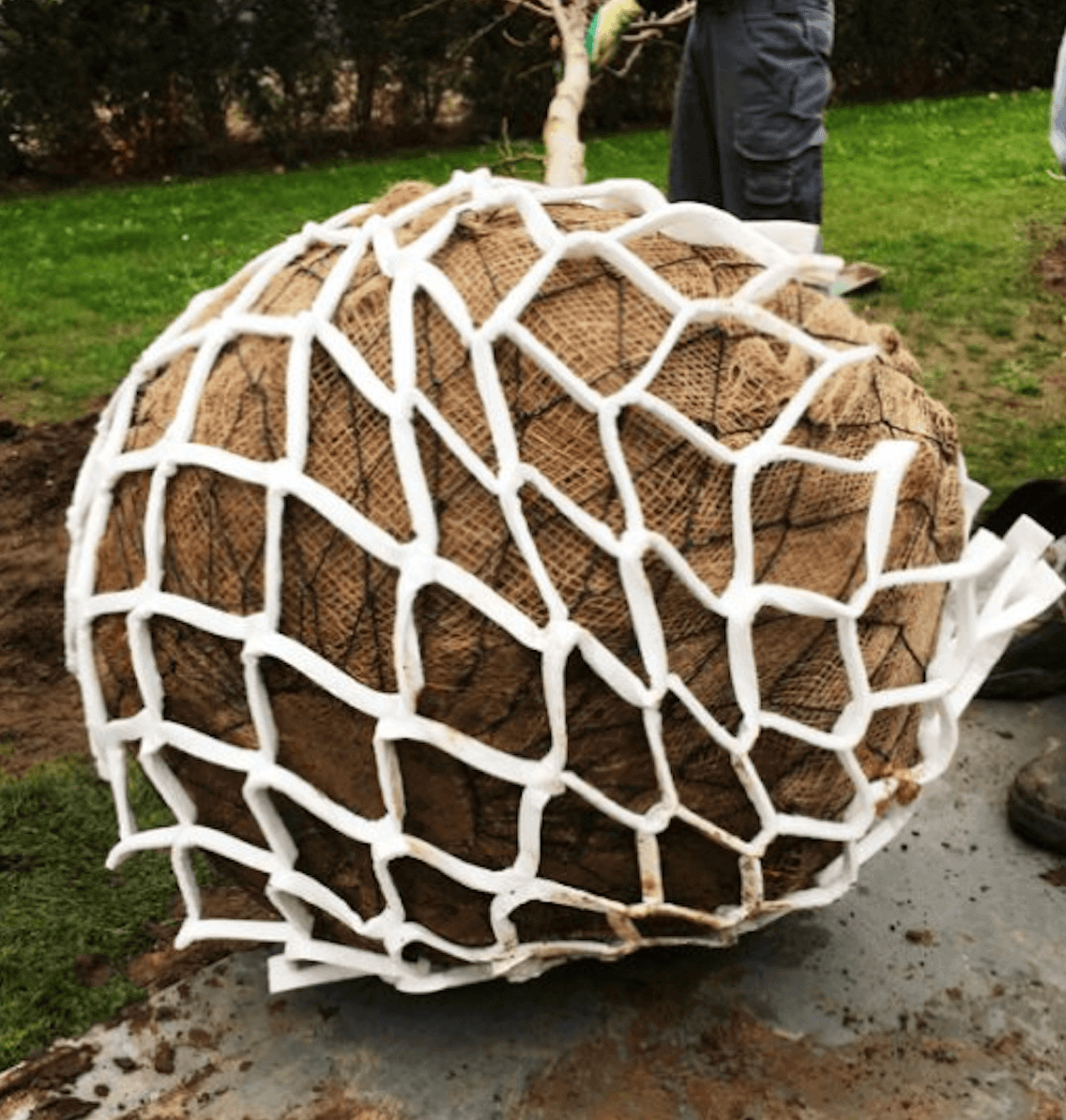

Lite-Net Water storage net for root supply
The textile water reservoir made of special fleece/felt contains only about 10% material and can store an exceptional amount of air and water in the remaining 90% pores. 1 kg of fleece/felt can store up to 10 liters of water. The reservoir is 100% biodegradable, consisting of 70% PLA (polylactic acids) and 30% cellulose fibers.
The LITE-NET establishment net is placed directly around the root ball to support the tree's establishment. It can be ideally combined with watering rims or irrigation bags to efficiently and evenly transport water to the tree roots.
Advantages
Product specialists André Carstens and Rafał Cegielski
Landscape planning graduate engineer André Carstens is your local contact in northern Germany and our specialist for questions regarding young tree supports. Together with Rafał Cegielski, he handles CAD drawings for automated irrigation solutions for gardens and green spaces. IT specialist Rafał Cegielski also manages the Polish market and is responsible for graphics.
Andre +49 (0) 2151 / 49 47 41
Rafal +49 (0) 2151 / 49 47 75
