Hollow Rope 4T classic

Hollow rope green 4 t classic

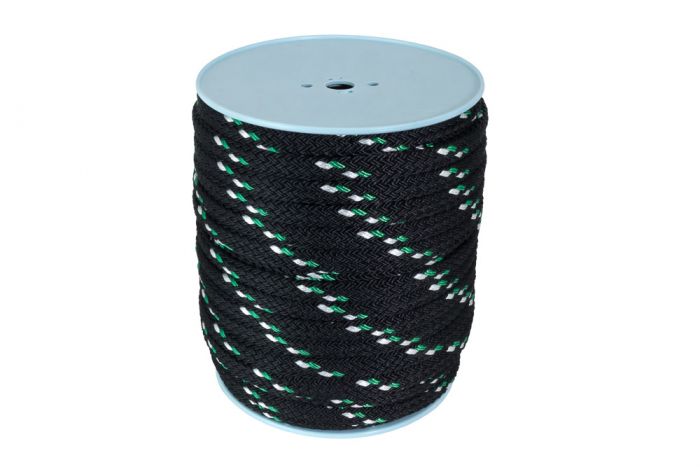

Classic hollow rope for crown securing. 16 mm, 4 t breaking load, green identification yarn, on 100 m spool.
Hollow ropes can generally be installed as a single-component system with abrasion protection, or as a multi-component system, for example with loop straps.

Many intermediate sizes as well as ropes with higher breaking loads for individual and economical solutions
Dyneema ropes of 12 and 20 t suitable for static securing

Installation:

In accordance with BG rules and the regulations of the FLL / ZTV Tree Care (Additional Technical Contract Conditions and Guidelines for Tree Care)
Tools: splicing fid, special adhesive tape, special scissors
Lashing straps prevent slipping of the loop straps on smooth branches or stems

Product properties:

Braided synthetic ropes without rope core
Lightweight and durable
Stable connections via splicing for maximum safety
Higher initial breaking load due to fiber count and braiding type
Made in Germany
Various elongation variants
Breaking indicator yarn for early detection
Special protective sleeve GEFAprotect®

TIP:

Foreign material introduced into the hollow rope can lead to weak points and reduced breaking strength.

Specifications:

Hollow ropes made of polyester (PES) 2/4/7/8/10 t, identification yarn green
Hollow ropes made of polyamide (PA) 2/4/7/8/10 t, identification yarn blue
Hollow ropes made of the high-tech fiber Dyneema 12/20 t without identification yarn
2/4 t available on 100 m spools
7/8/10/12 t available on 50 m spools
20 t Dyneema rope available by the meter or on 25 m spool

Accessories:

Abrasion protection GEFAprotect®: loop strap on roll

Pressure-distributing properties due to wide, stable contact surfaces (dimensions: 50 mm, 75 mm and 100 mm wide)
Saves material and storage costs in load ranges up to 10 t
Protects bark, cambium and the internal hollow rope fibers from damage
Practical 25 cm markings facilitate cutting to length
Year marking on roll

Simplified inspection using established annual colors
Universally applicable for straps and hollow ropes
Roll length 5 m
Optimal price-performance ratio through cutting to requirement

Lashing straps

Provides grip on smooth stems
For combination with protective sleeve
Protection against cutting in

Protective sleeves

Pressure distribution and abrasion protection
Increase the service life of the safety components and protect the cambium

Tools:

Splicing fid in 4 different diameters
Special adhesive tape
Special scissors
