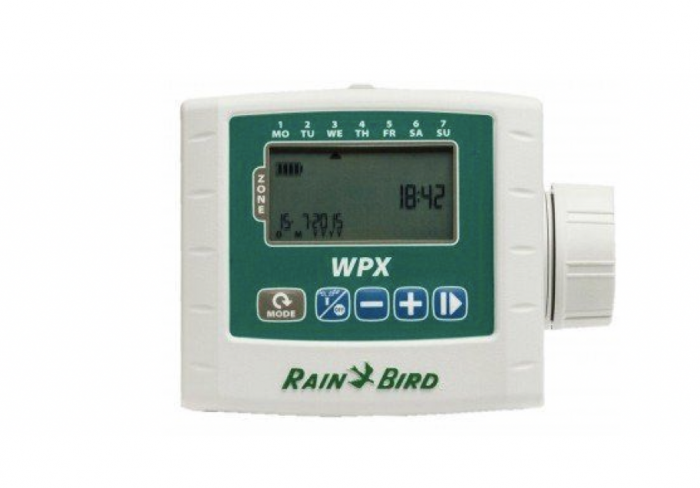

Control unit WPX -1 Rain Bird®


Control unit WPX -1 battery - Rain Bird®

- WPX-1 battery operated control unit
- for one stations,
- ready for operation with a 9 V alkaline battery,
- 8 independent start times per zone.

In stock
* zzgl. 19% MwSt., zzgl. Versandkosten
  • Free delivery Fast delivery
  • Quality and service For Professionals

Control unit WP-1 battery - Rain Bird®

WP-1 battery-operated control unit, for one station, ready for operation with a 9 V alkaline battery, 8 start times per day.

Battery operated: functional with a high quality 9 volt alkaline battery (e.g. Varta). Battery not included
Robust and completely waterproof (IP68), even under water
Available as a pre-assembled kit for faster installation

Easy to install and program

Easy to attach to a Rain Bird pulse controlled solenoid
Large LCd display with easy to understand symbols
Ergonomic 3-key keyboard for simple and intuitive programming
Manual start with adjustable irrigation duration, which is counted down

water saving

With the water budget function, the watering time can be varied from 0 to 200%
The system can be switched off for a specified period (1 to 15 days) using the programmable "Rain Delay" function
With a rain sensor, irrigation is stopped immediately when it rains

Reliable operation

Electronic control unit
The WP1 can be used with the pulse-controlled Rain Bird solenoids from the TBOS ™ system
Battery status symbol


8 start times per day
Irrigation cycles:
7-day cycle (choice of days of the week)
Even days
Odd days, with or without the 31st
Cyclical: 1 to 15 days
Number of stations: 1
Station calculation time: from 1 minute to 12 hours in 1 minute steps
Operating temperature: - 20 ° to 70 ° C
Max. Operating pressure: 10 bar
See description of the Jar Top valve

Electrical characteristics:

Ready for use with a 9 V alkaline battery
Compatible with all Rain Bird valves that are equipped with a pulse-controlled solenoid from Rain Bird
Maximum distance between the control unit and the pulse-controlled solenoid coil: 30 m with a cable of 1.5 mm 2 cross-section
Direct connection to an RSD-Bex rain sensor possible


Height: 10.3 cm
Width: 6.3 cm
Depth: 9.0 cm

More Information
Price €132.78
Product type Control units
