Beautiful and richly flowering planting in inner-city areas is not always easy. A high level of maintenance, such as watering especially in the summer, adds up to many hours of work.
The GEFA Flower Design range offers a rich selection of plant elements with long-term water storage function. Thanks to high-quality and technically sophisticated planters, beautifying the city centre is no longer a problem. With the possibilities of light mast greening and through plant towers, a suitable solution is available for almost every location.
We're here to support you.
Specialist Jonas Herzog
The trained retail salesman is responsible for order processing and is the contact person for projects in the field of urban greenery and securing young trees.
Equipped with the largest water reservoir in its class and the ingenious fastening system, the Royal half shells stand out from their siblings. Planter and mast form a seemingly inseparable unit. When there are no plants, the traverse cleverly disappears on the back of the double-walled half-shells, but it can also be attached using an elegant bracket. Since the fastening clamps have to be matched to the mast thickness, they are not included in the price.
The processing is of high quality: the bowls are double-walled, the plastic is UV-stable and frost-proof. 9 liters of water are available for 8 plants on a diameter of 650 mm.
The water reservoir is separated under the substrate. The water is directed to the plants via a capillary mat and thus supplies them over a long period of time. The capillary mats are included in all our Flower Design products for mast greening and save you a lot of time and money for maintenance in the dry and hot summer months.

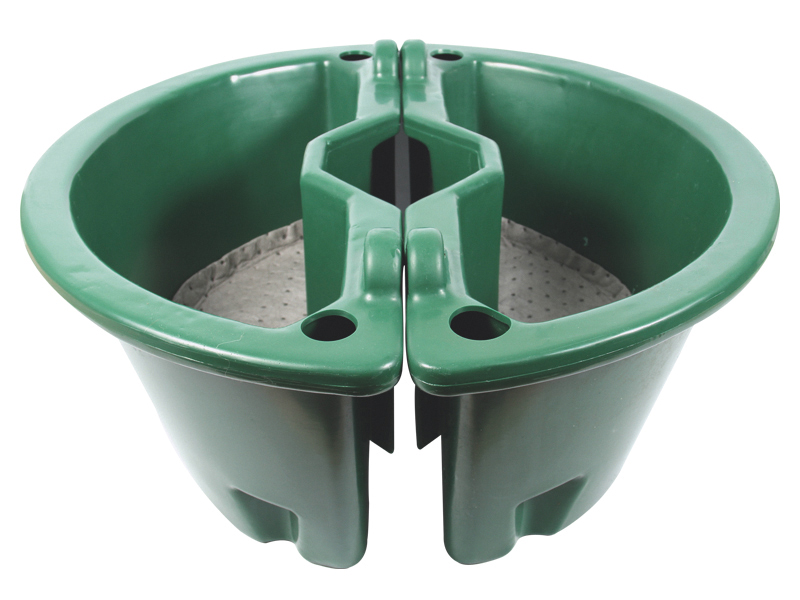

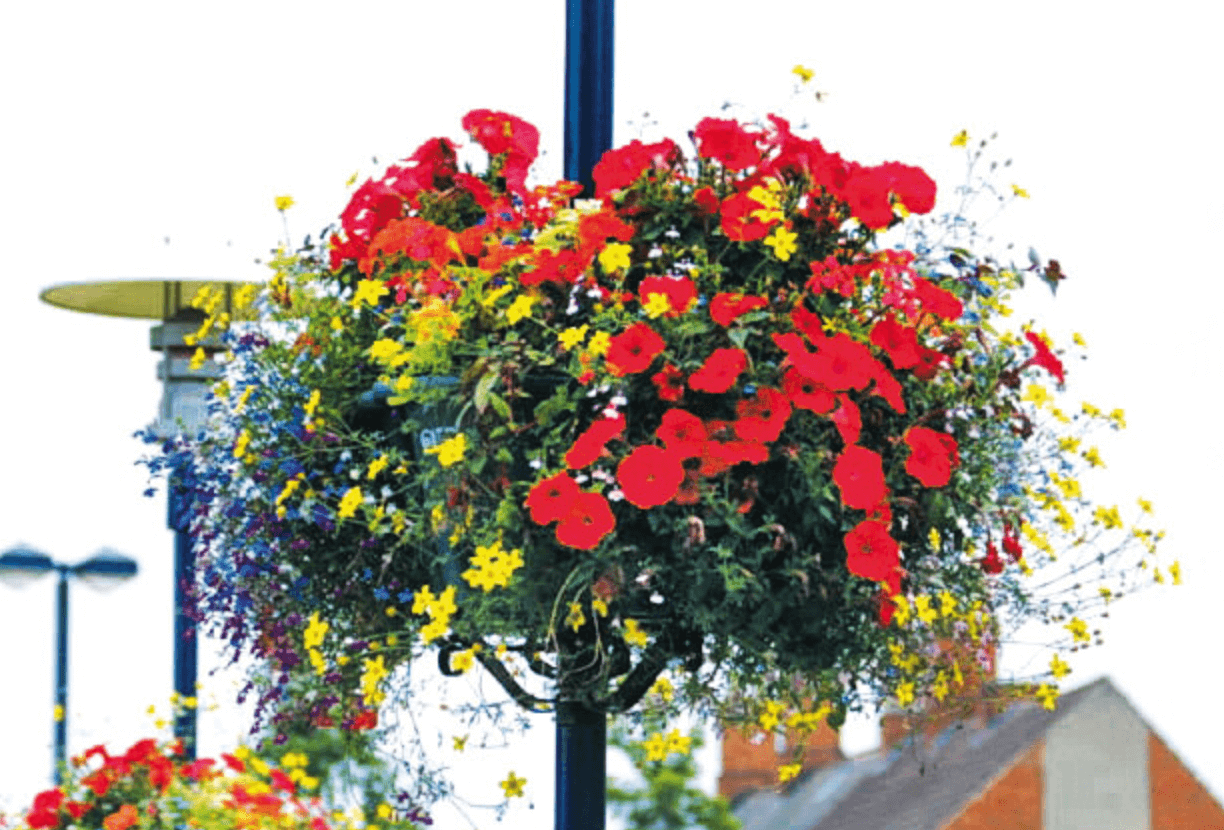

Half shells Brighton

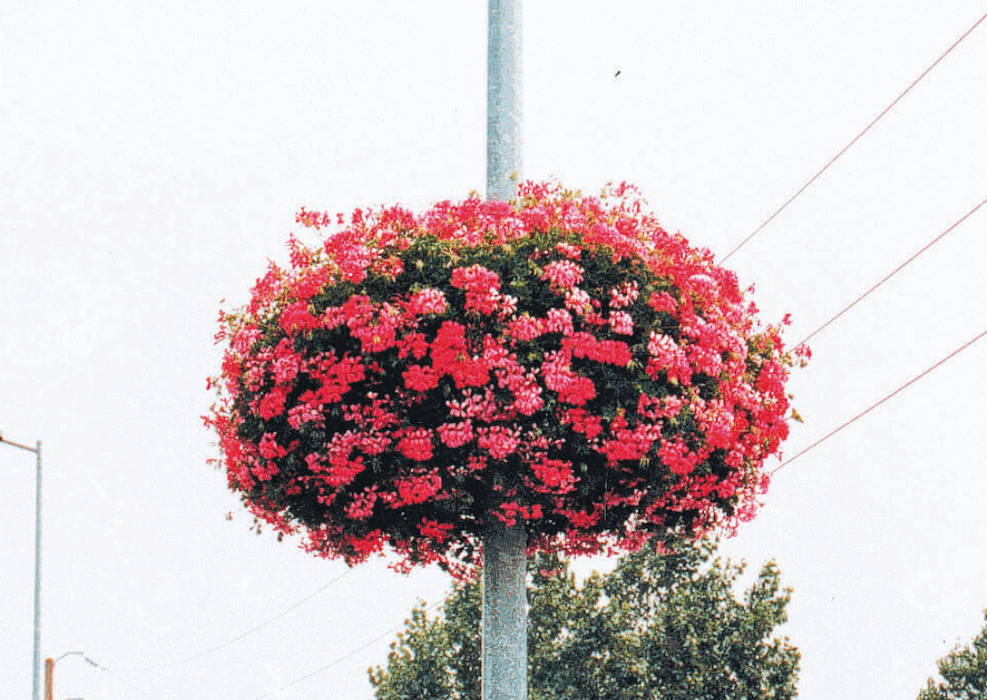

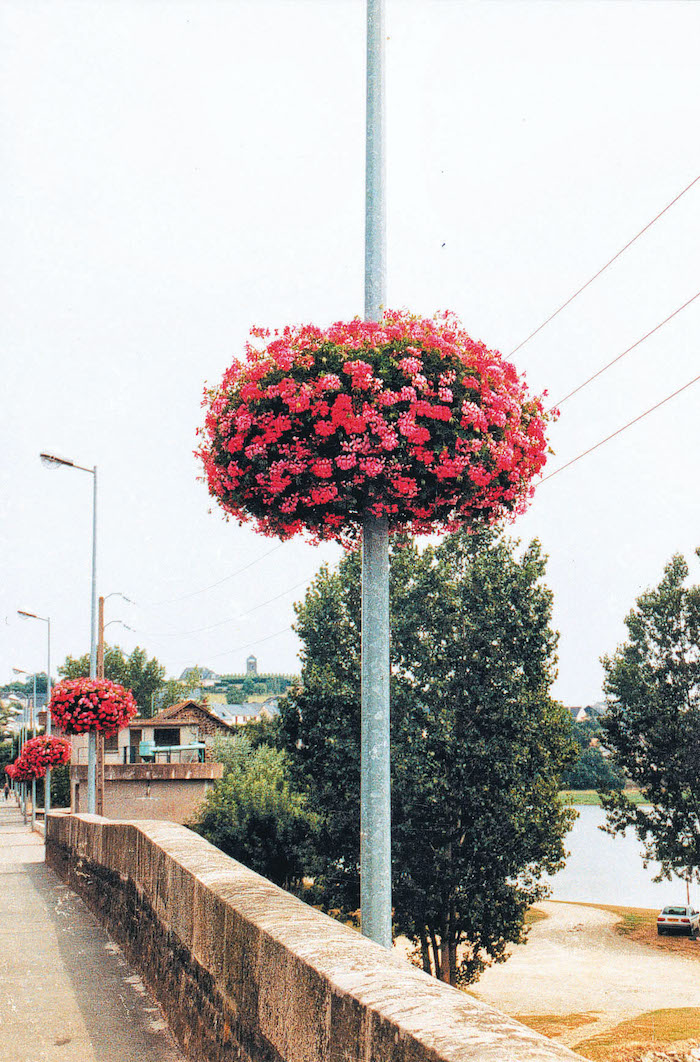

With high-quality, technically sophisticated plant elements, colourful, full flower balls for your city center are no problem
The mast greening consists of double-walled
plastic half-shells. The containers are weather-resistant and have special water tanks to keep maintenance costs as low as possible. You have two different sizes to choose from. And so that you have blooming inner cities almost all year round, we supply you with special inserts that also allow alternating planting.
When hanging up the Brighton half-shells, you can basically fall back on shapely brackets on which the half-shells rest. The black-coated metal consoles are attached to the mast with stainless steel straps and screwed to the shells so that they are secured against falling.

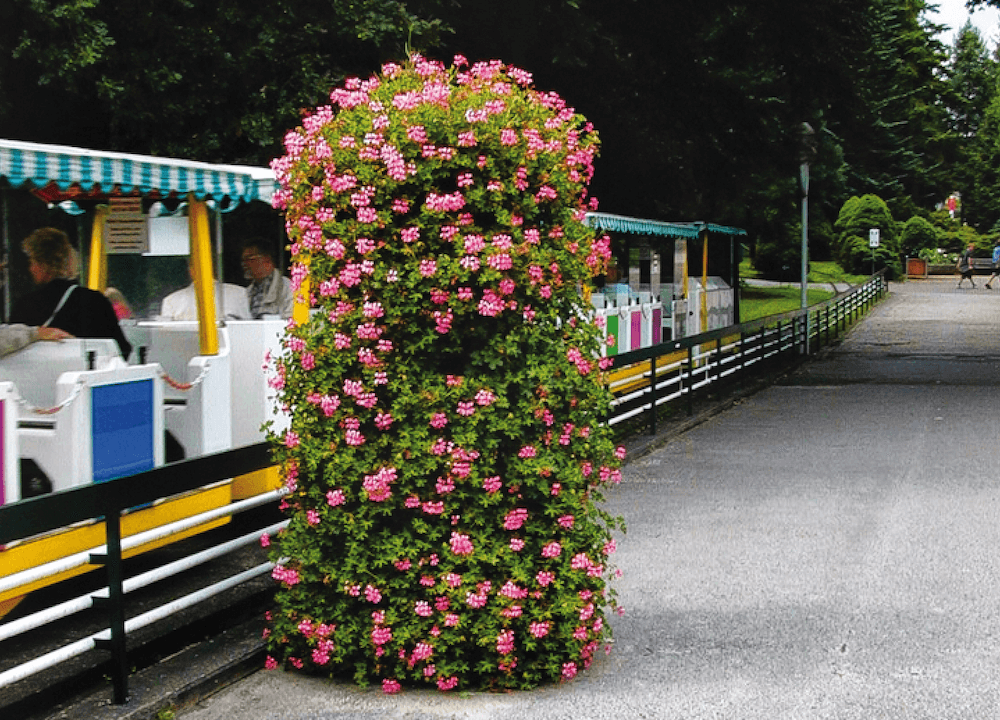

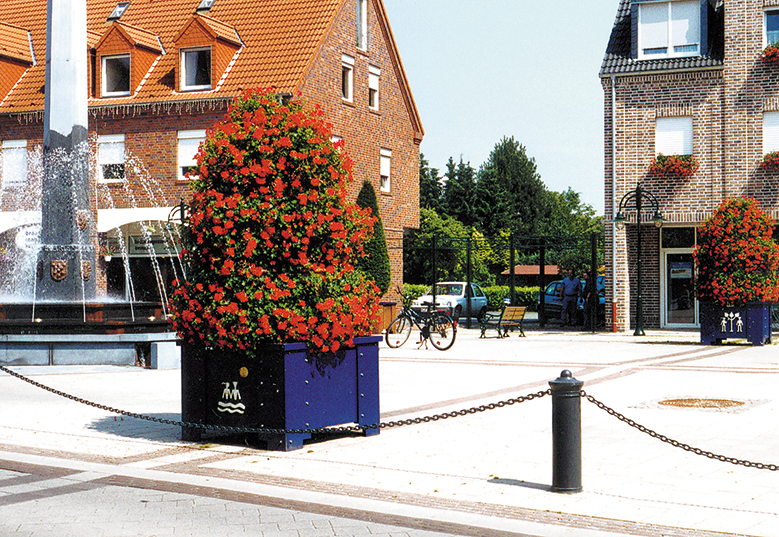

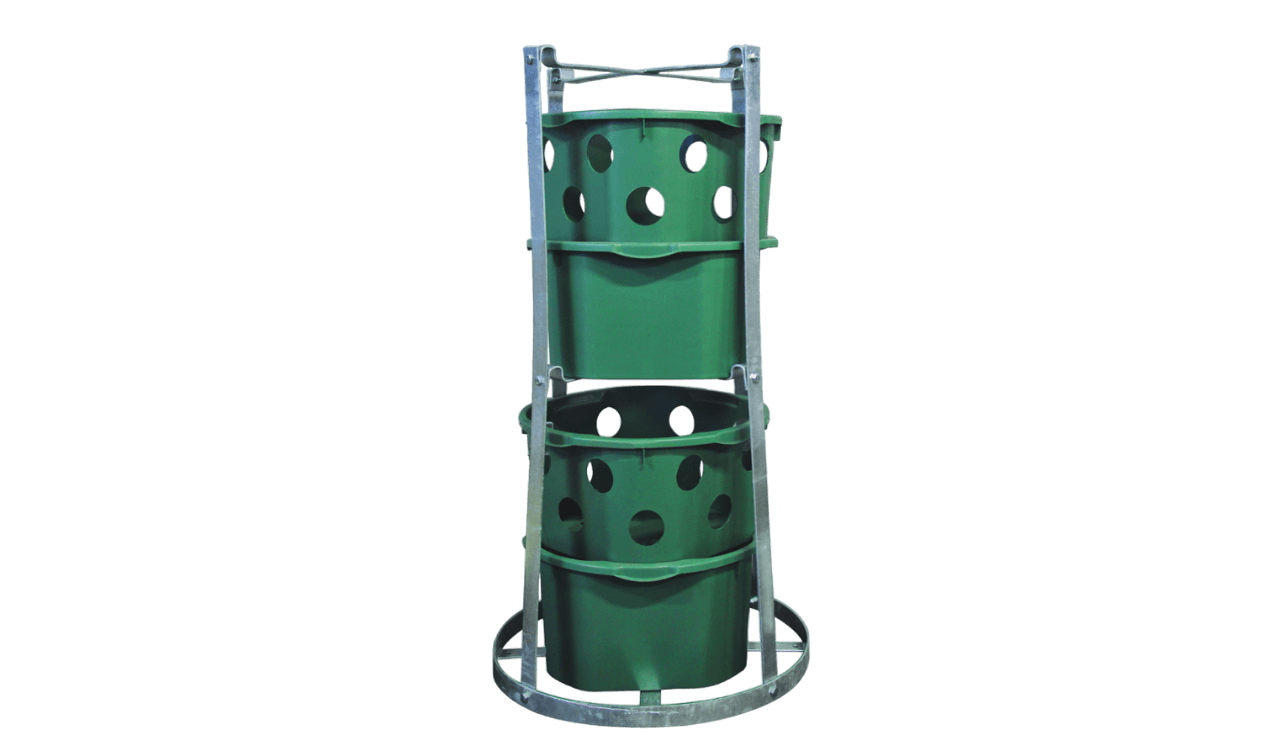

Symmetrical designs as a visual eye-catcher for every purpose. The lush flowers hide the water deposits, which reduce the maintenance work enormously and can be used almost anywhere. The hot-dip galvanized and, if desired, powder-coated steel frames with ground ring ensure that the towers are very stable. The vessels are stacked on top of each other and thus form a unit. With a small turn, the upper vessel is placed on the lower one by means of support points, which with a volume of 60 l serves as a water reservoir and supplies the plants with water through capillary rods. This allows the flowers to be watered for up to 14 days. To save space are the towers
easy to dismantle and the vessels can be placed inside each other.

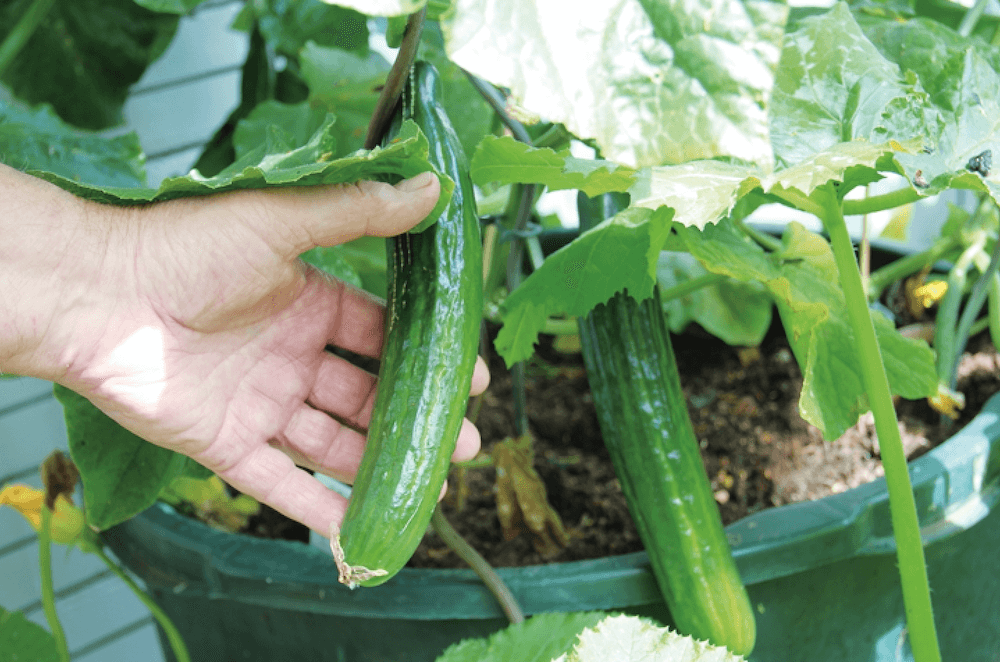

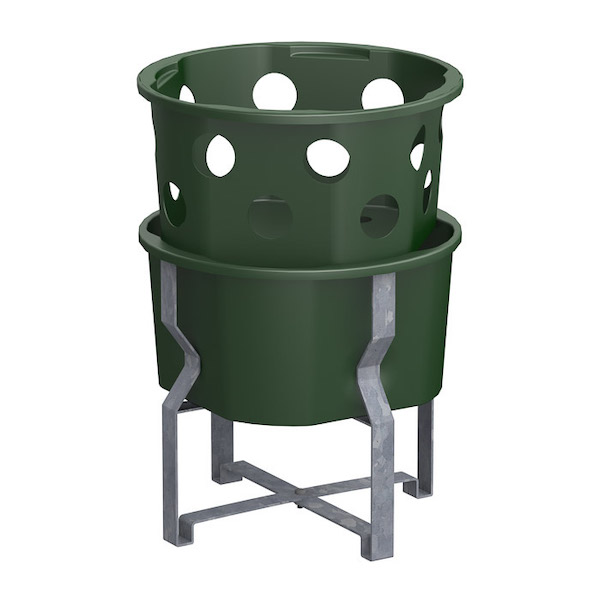

The BIO Garden Tower is ideal for balconies, terraces and small gardens.
The further development now enables "utility cultivation". Two to three harvests are possible due to the optimal air and water flow at the bottom of the container. Zucchinis, potatoes, cucumbers and also flowering things are possible with this variant without any problems.
The BIO Garden Tower has a height of approx. 90 cm and is therefore at the optimum height for a kitchen garden. Planted with e.g. B. red flowering hanging geraniums, it offers a bright eye-catcher in front of every house entrance.
Product features
• Height: 90cm
• 65 l water tank and 65 l planter
• Optimum air and water flow at the bottom of the tank
• "Cultivation" with up to 3 crops possible
• Mobile
• For courgettes, potatoes, cucumbers, etc. and blooming.

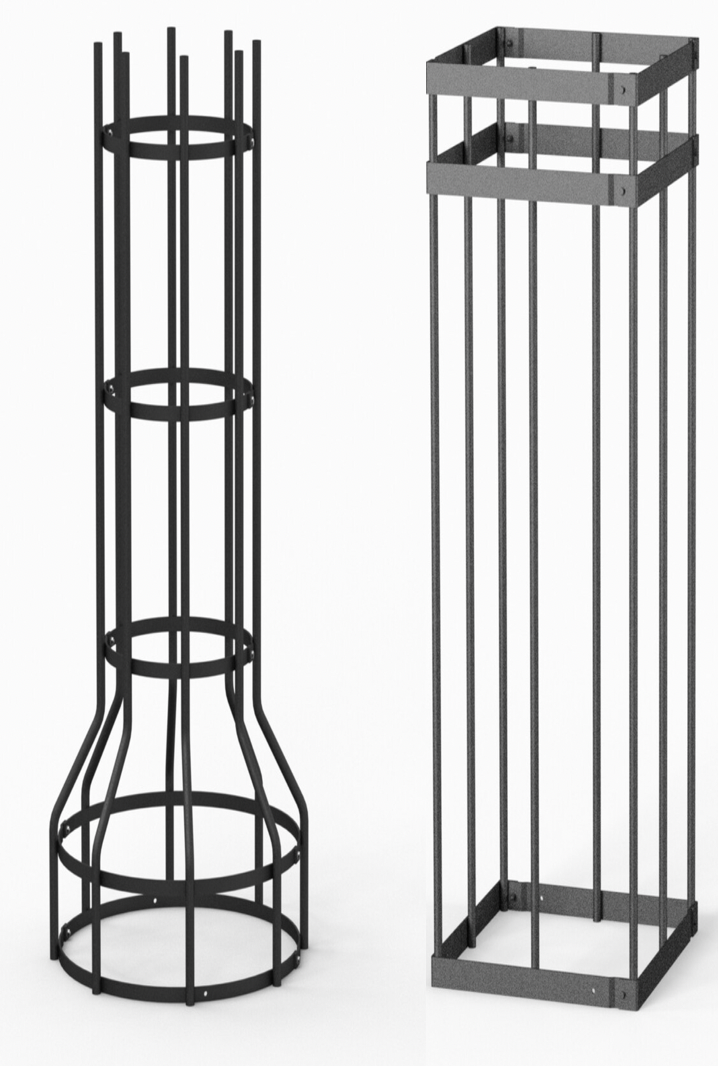

Tree protection grids make an important contribution to the protection of newly planted and existing trees in our cities and communities. They surround a large part of the trunk area and thus reliably protect it against damage without taking up much space itself. In addition to their functionality, the new GEFA tree protection grids impress with their innovative design and workmanship of the highest quality.
The GEFA tree protection grids can be installed with or without GEFA tree protection grating. The material for secure attachment is included. All tree protection grids consist of multi-part, welded steel elements and are hot-dip galvanized according to DIN EN ISO 1461. You can choose between two different designs with different diameters.
Tree protection grid PATERNA
Design: Round, 2 pcs. screwed, to be fastened with brackets or with pegs
Material: 16 x 8 mm flat steel S235JR (EN 10 027-1), welded and hot-dip galvanized according to DIN EN ISO 1461
Surface: Hot-dip galvanized or hot-dip galvanized and powder-coated, (color: iron mica black)
Tree protection grid LUGO
Design: Square, 4 pcs. screwed, to be fastened with brackets or with pegs
Material: Round tube 26.9 mm and flat steel 60 x 5 mm S235JR (EN 10 027-1), welded and hot-dip galvanized according to DIN EN ISO 1461
Surface: Hot-dip galvanized or hot-dip galvanized and powder-coated, (colour: iron mica black)
In the city, the basic prerequisite for healthy tree growth - in addition to an adequate supply of water and oxygen - is the avoidance of soil compaction and the dissipation of pressure from the root area.

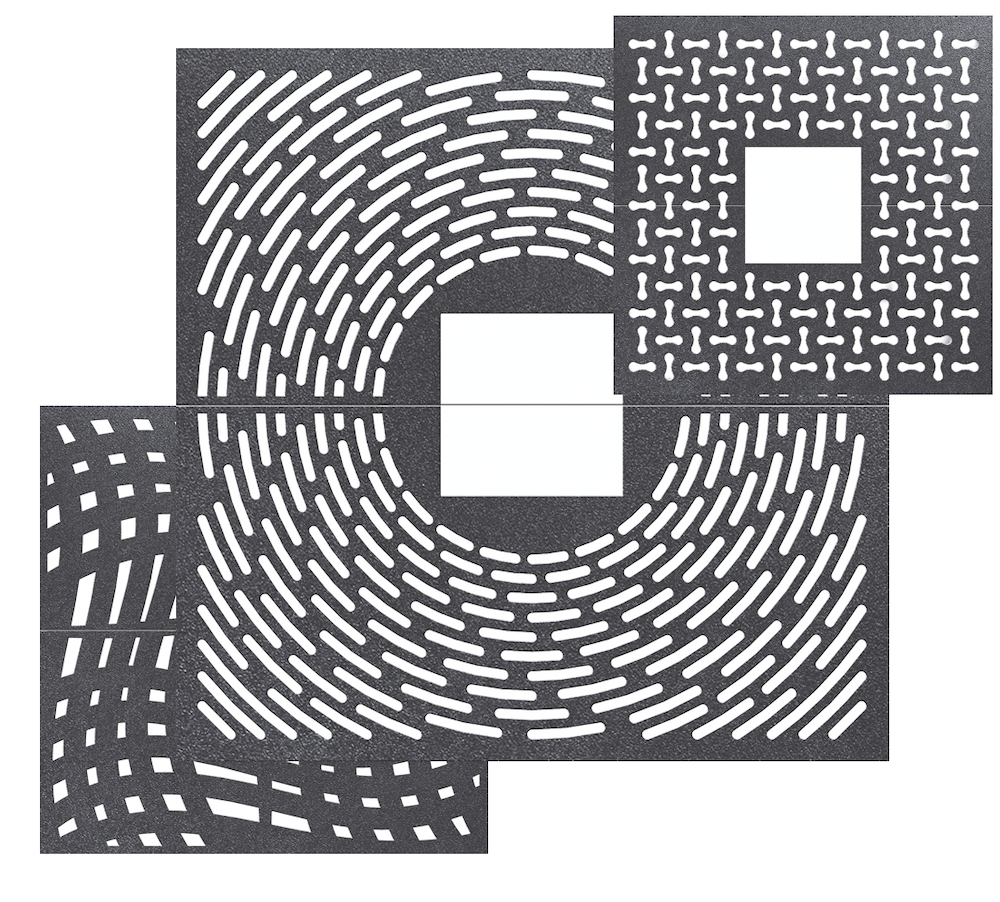

Tree protection grates protect the sensitive area of the root ball around the trunk from soil compaction and injuries.

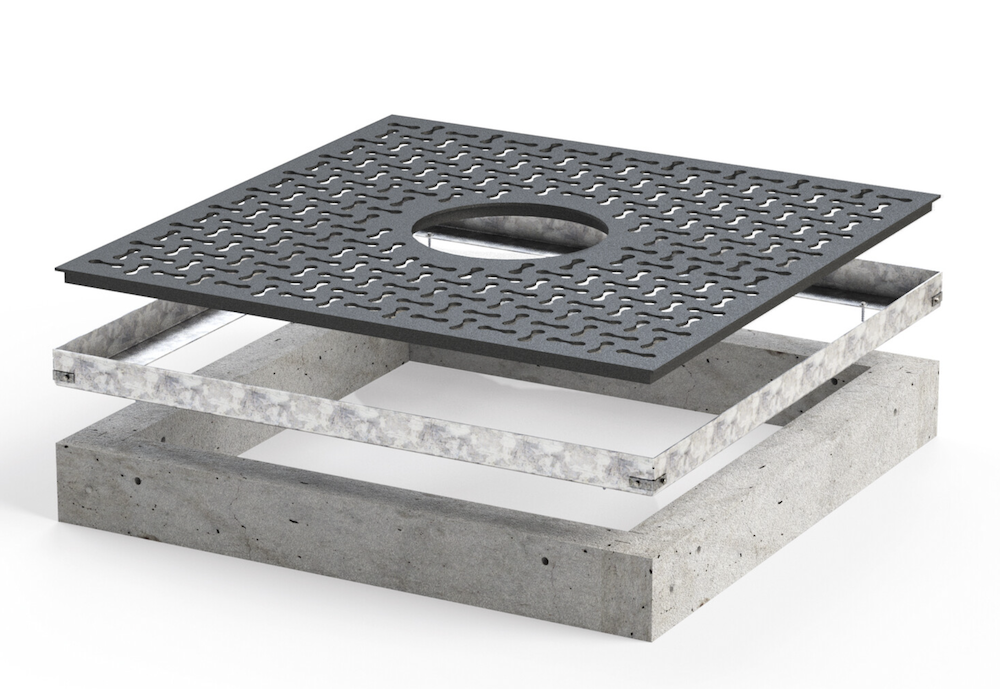

GEFA complete tree protection grating systems are cut from hot-dip galvanized steel using laser technology. The complete systems are multi-part and each contain a lasered disc made of sheet steel with a welded-on supporting structure made of steel, fastening material and substructure.
1.5 t wheel load (light version: for pedestrians and cars)
5.0 t wheel load(heavy version: suitable for trucks driving over it)
Sizes tree discs 150 x 150 cm, 200 x 200 cm or 300 x 300 cm.
Tree opening sizes Round: Ø 30 - 100 mm, Square: Ø 30 x 30 mm - 100 x 100 mm
Materials & Facts
Steel:S235JR (EN DIN 10 027-1) hot-dip galvanized (DIN EN ISO 1461)
Surface: powder-coated (DB 703) mica fine structure
According to the guidelines of DIN 51130 in the anti-slip class.
Concrete foundation: 4 parts, x cm, 25 cm high
*All GEFA tree protection gratings are of course compatible with the tree protection grids and can be combined with the TreeParker® root management system!
Public green
Flowering plantings in urban areas often require a lot of maintenance. The GEFA Flower Design range offers plant elements with water storage and planting containers. Thanks to high-quality and technically sophisticated planting containers, beautifying city centers is no longer a challenge. With lamppost greenery and planting towers, there is a solution for every location.
The Flower Design product range from GEFA offers a wide selection of innovative planting solutions for professional ground and pole greening. Our products are specifically designed to simplify maintenance and irrigation, making them not only functional but also cost-effective. Whether for use in urban areas or special greening projects, you will find well-thought-out solutions that meet the needs of your project.
Let yourself be inspired by our diverse options and discover the products for your needs. Whether you want to transform urban spaces into green oases or create attractive environments, we are here for you. Our experienced team supports you with expert advice and creative ideas to successfully implement your vision and permanently enrich your surroundings. Together, we create green, livable spaces that benefit both people and nature.
GEFA Mobile Green
PROFESSIONAL PLANT CONTAINERS FOR YOUR CITY CENTER

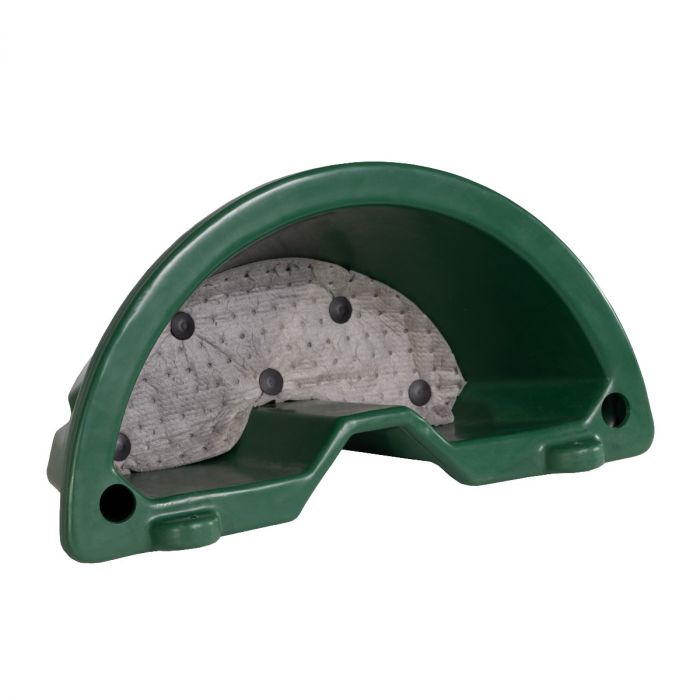

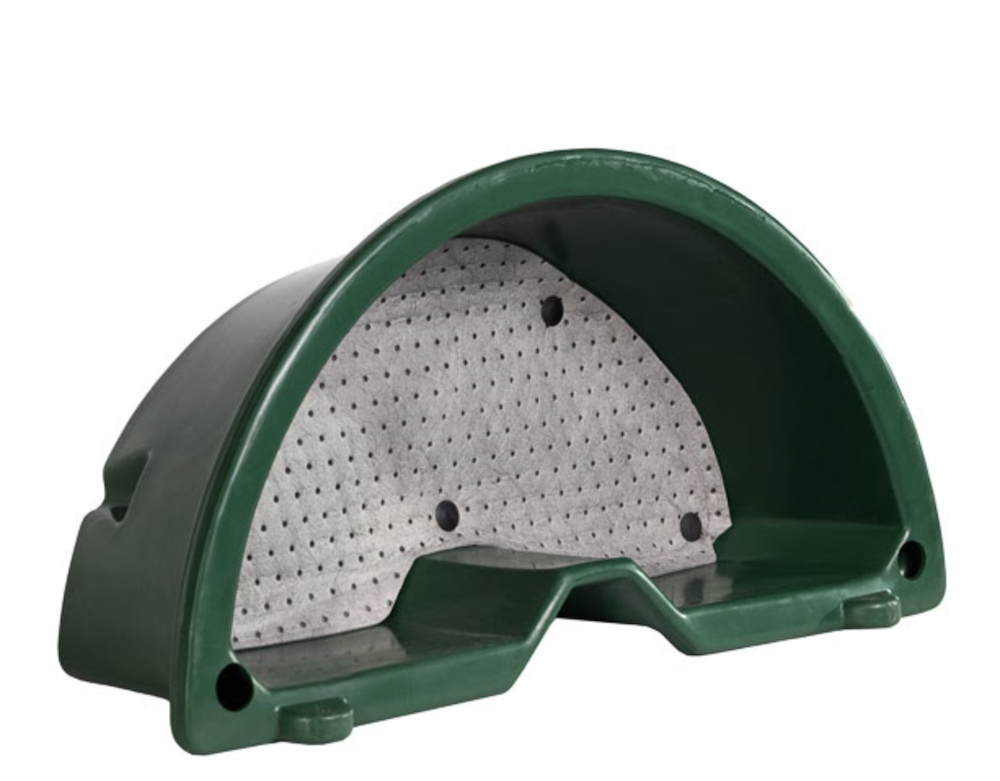

HALF-SHELL ROYAL
Equipped with the largest water reservoir in its class and an ingenious fastening system, the Half-Shell Royal distinguishes itself from its counterparts. The planting container and pole form an almost inseparable unit. Even when unplanted, the traverse cleverly disappears on the back of the double-walled half-shells, but fastening with an aesthetically pleasing bracket is also possible. Since the fastening clamps must be tailored to the pole thickness, they are not included in the price.
The shells are double-walled, and the plastic is UV-stable and frost-resistant. 9 liters of water are available for 8 plants on a diameter of 650 mm. The water reservoir is beneath the substrate. Water is directed to the plants through a capillary mat, providing them with moisture over an extended period. The capillary mats are included in all our Flower Design products for pole greening, saving you a lot of time and costs for maintenance during dry and hot summer months.
With high-quality, technically sophisticated planting elements, vibrant, full flower balls for your city center are no longer a problem.
The pole greening consists of double-walled plastic half-shells. The containers are weather-resistant and equipped with special water reservoirs to minimize maintenance efforts. You can choose from two different sizes. To ensure blooming city centers almost year-round, we also provide special inserts that allow for interchangeable planting.
For suspending the Brighton half-shells, you can use elegant brackets on which the half-shells rest. The black-coated metal brackets are attached to the pole with stainless steel bands and screwed into the mounted shells to secure them from falling. The Brighton half-shell is also available with a diameter of Ø 800 mm. We generally keep the half-shells in green in stock for you.
Please also inquire about versions in other colors such as anthracite.
Ø 650 mm, 9L water reservoir, capillary mat, and traverse or bracket for pole attachment.
2
2

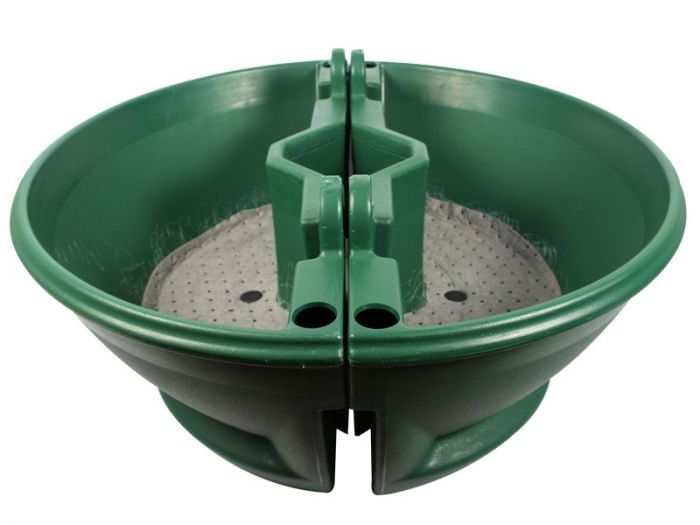

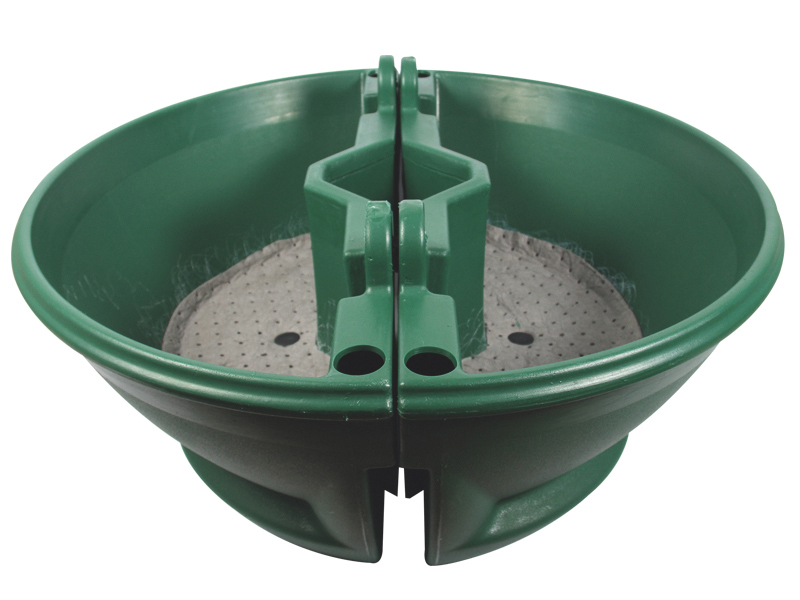

Double-Shell ROYAL
Ø 650 mm, 18L water reservoir, capillary mat, and traverse or bracket for pole attachment.
3
3

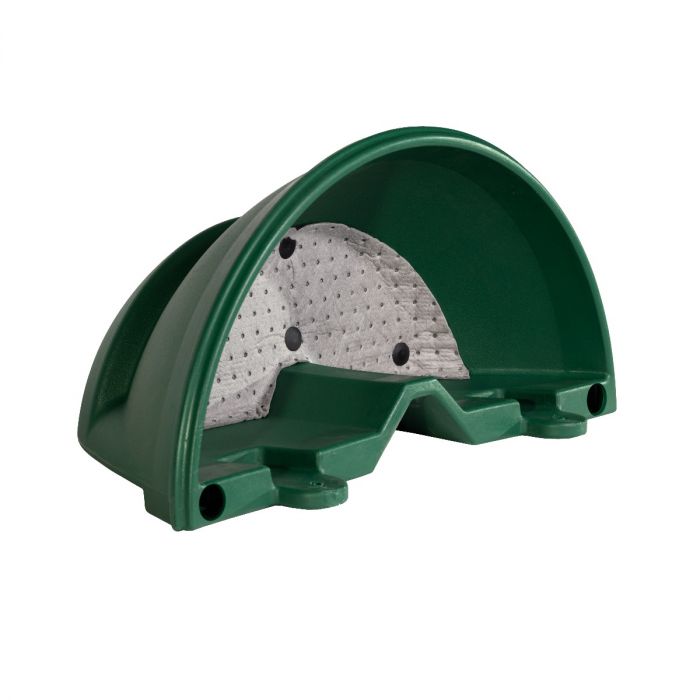

Half-Shell BRIGHTON
Ø 600 mm, 5L water reservoir, capillary mat, and bracket or traverse for pole attachment.
4
4

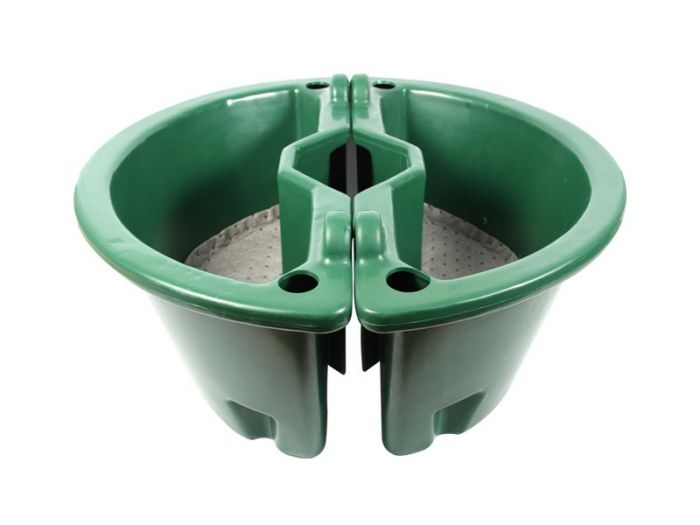

Double-Shell BRIGHTON
Ø 600 mm, 10L water reservoir, capillary mat, and bracket or traverse for pole attachment.
5
5

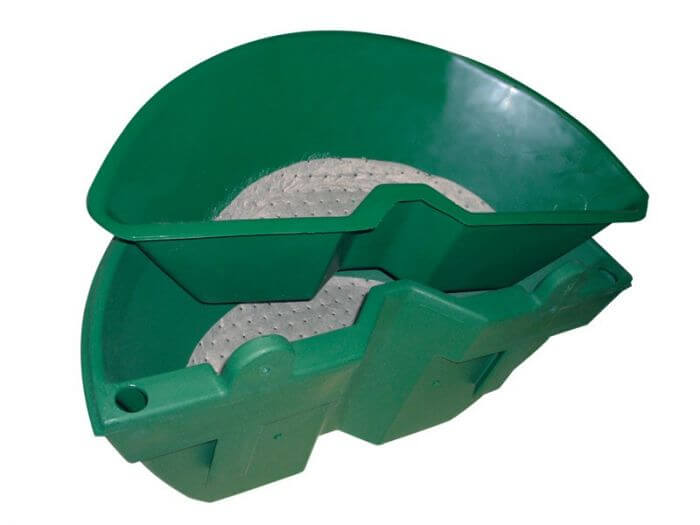

Insert Brighton 600 mm
Insert for the Half-Shell Brighton 600 mm, including integrated capillary mat. Allows for interchangeable planting.
GEFA Mobile Green
SYMMETRICAL DESIGNS AS AN OPTICAL EYE-CATCHER FOR ANY PURPOSE.
GEFA Mobile Green
PLANT TOWER

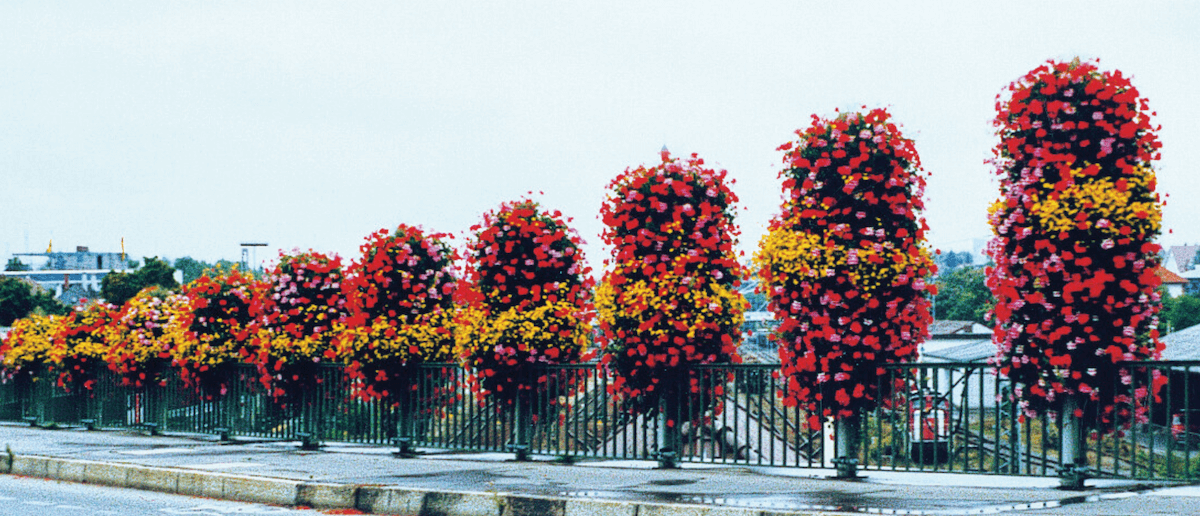

Symmetrical designs as an optical eye-catcher for any purpose. The abundant flowers conceal the water reservoirs, which significantly reduce maintenance work and are almost location-independent. The steel frames, which are hot-dip galvanized and, upon request, powder-coated, provide high stability for the towers with a base ring. The containers are stacked on top of each other, forming a unit. With a small turn, the top container is placed on the lower one using support points, which serves as a 60L water reservoir and supplies the plants with water via capillary rods. This allows the flowers to be watered for up to 14 days. For space-saving, the towers are easy to disassemble, and the containers can be nested inside each other.
The BIO Garden Tower is perfect for balconies, terraces, and small gardens.
The new development now allows for "productive cultivation." With optimal air and water flow at the bottom of the container, two to three harvests are possible. Zucchinis, potatoes, cucumbers, and even flowering plants can be easily grown with this variant. The BIO Garden Tower has a height of approximately 90 cm, making it the ideal height for a vegetable garden. Planted with, for example, red-flowering trailing geraniums, it offers a striking focal point in front of any entrance.

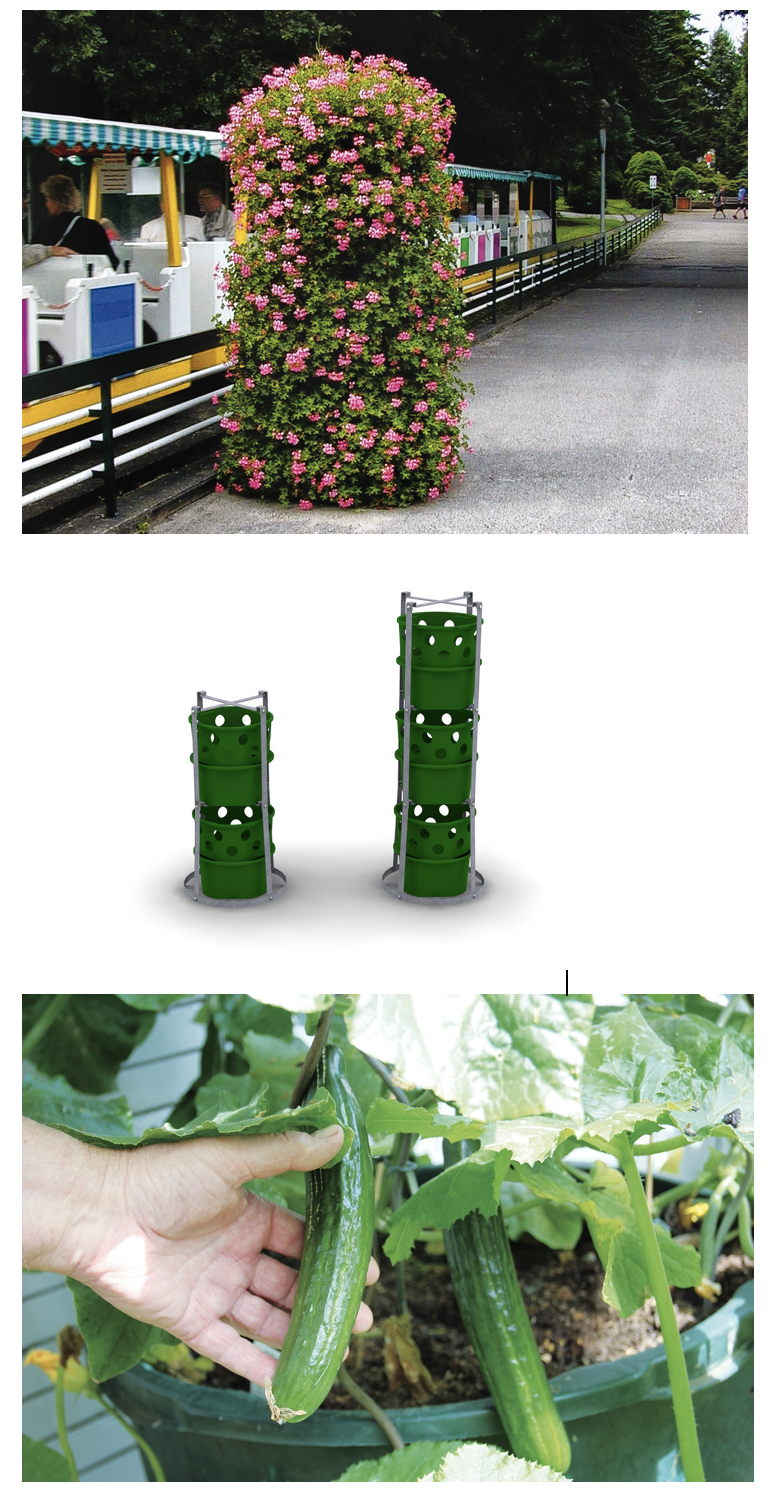

The Capillary Planting Tower NEW CENTER M, 1.50 m, consists of a hot-dip galvanized steel frame with a height of 1.50 m, 2 planting containers with 65L volume each for 54 plants, and 2 water reservoirs of 65L each with capillary irrigation.

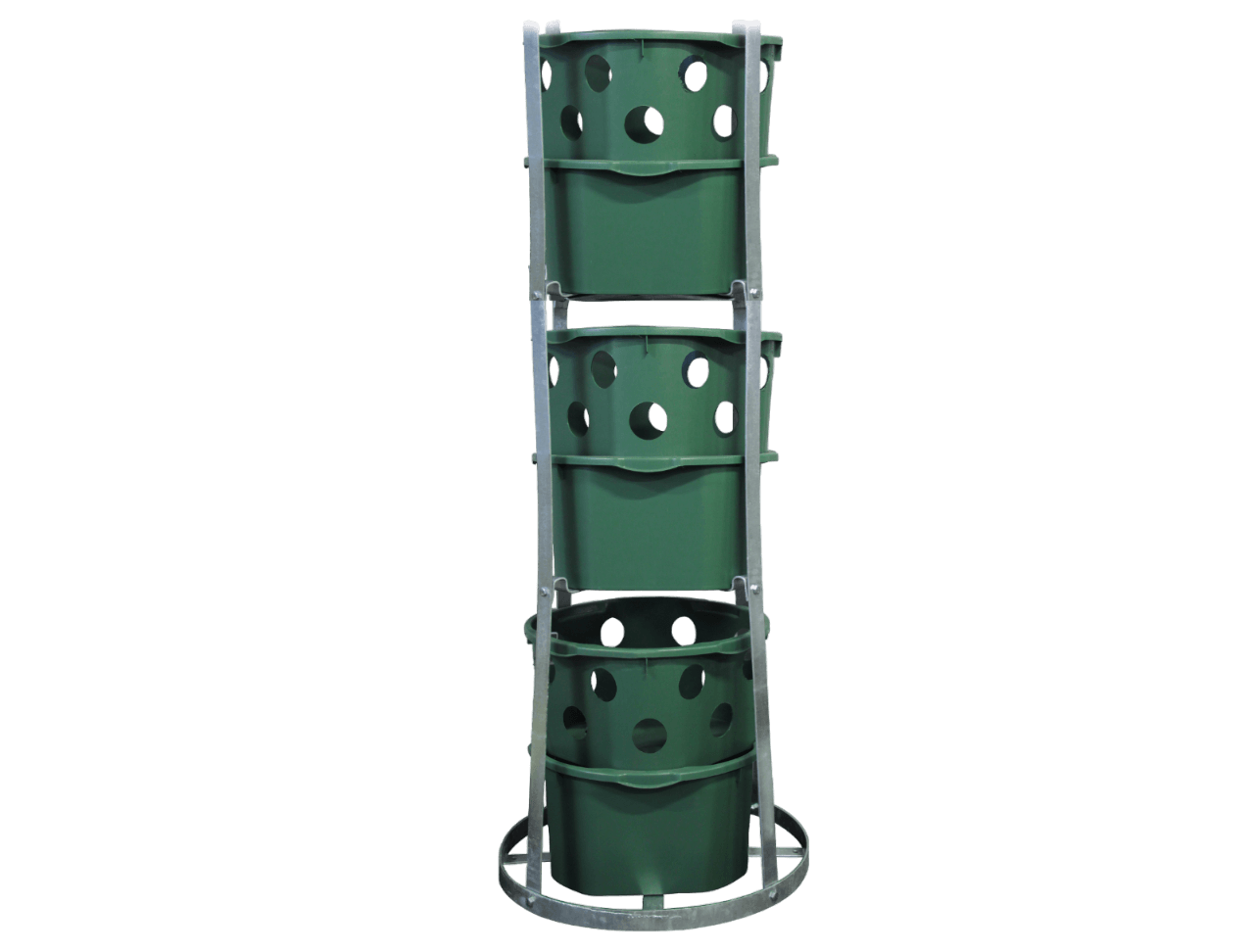

The Capillary Planting Tower NEW CENTER L, 2.25 m, consists of a hot-dip galvanized steel frame with a height of 2.25 m, 3 planting containers with 65L volume each for 78 plants, and 3 water reservoirs of 65L each with capillary irrigation.
GEFA offers various additional products for Flower Design plant elements. These include traverses and brackets for securing pole greening, as well as capillary rods that ensure easy irrigation. For installation, worm threads are used to provide a stable and secure setup. These products make it easy to transform urban environments made of concrete and steel into green, welcoming spaces with minimal effort.
Our internal sales team is happy to assist you in selecting the optimal solution for securing your young trees. You can contact us via our central hotline and/or central email. Katharina Heinrich, Wowa Schulteis, and Sadi Abu Hamoud are here to advise you.
